Конвертеры аппаратные

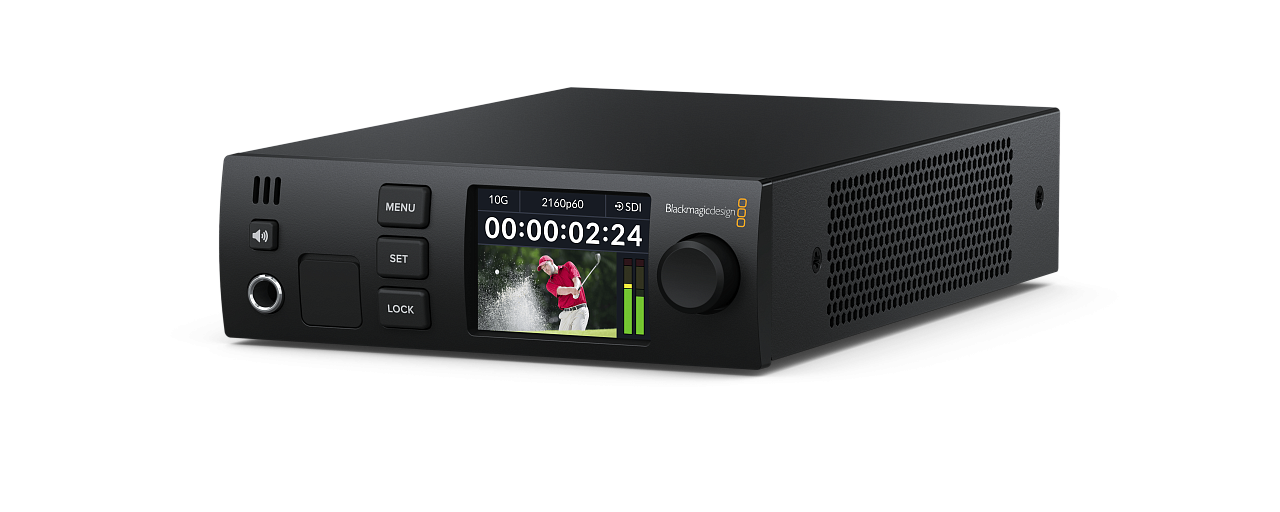

Blackmagic 2110 IP SDI to HDMI 12G конвертер

Артикул: CONVNVIPM/12G/HDMI02. Код: ЦБ-00009096

Blackmagic 2110 IP SDI to HDMI 12G - новый конвертер в рэковом исполнении, преобразует видео 12G-SDI или SMPTE-2110 в HDMI.

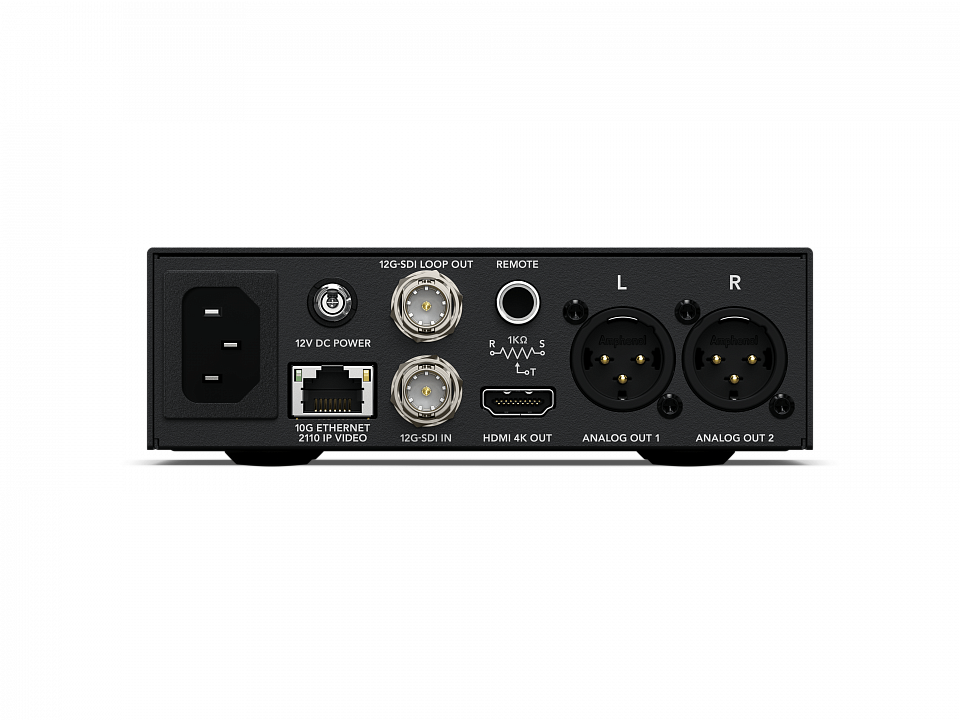

Connections
SDI Inputs	1
SDI Loop Outputs	1
SDI Rates	SD, 1.5G, 3G, 6G and 12G
HDMI 2.0 Video Outputs	1
SMPTE 2110 Input / Output	1 x 10G Ethernet
SMPTE ST 2110 IP Audio Inputs / Outputs	16 channels embedded input and output audio on ST‑2110 IP video via 10G Ethernet.
SDI Audio Inputs	16 channels embedded audio.
SDI Audio Outputs	16 channels embedded audio.
HDMI Audio Inputs	8 channels embedded audio.
HDMI Audio Outputs	8 channels embedded audio.
Analog Audio Outputs	2 channels of professional balanced analog audio with 3‑pin XLR connectors.
	1 x 6.35 mm headphone jack.
Webcam Outputs	1 x USB‑C up to 1080p60
Ethernet	Ethernet supports 10/100/1000/10G BASE‑T for SMPTE 2110 IP video in and out, configuration and software updates.
Computer Interface	USB‑C for webcam out, updates and configuration
Video Standards
SD Video Standards	525i59.94 NTSC, 625i50 PAL
HD Video Standards	720p50, 720p59.94, 720p60
	1080i50, 1080i59.94, 1080i60
	1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60,
	1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2K Video Standards	2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI,
	2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Ultra HD Video Standards	2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4K Video Standards	4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
SMPTE Compliance	SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2036‑1, SMPTE 2048‑1, SMPTE 2081‑10, SMPTE 2081‑11, SMPTE 2081‑12, SMPTE 2082‑10, SMPTE 2082‑11, SMPTE 2082‑12 and SMPTE ST2108‑1
SDI Metadata Support	RP 188/SMPTE 12M‑2 and closed captioning.
Audio Sampling	Television standard sample rate of 48 kHz and 24 bit.
Color Precision	8, 10 RGB 4:4:4 in all modes up to 1080p30 and 8, 10‑bit YUV 4:2:2 in all modes.
Color Space	Rec. 601, Rec. 709, Rec. 2020
HDMI HD Video Standards	720p50, 720p59.94, 720p60
	1080i50, 1080i59.94, 1080i60
	1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
HDMI Ultra HD Video Standards	2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p62
HDMI 4K Video Standards	4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
HDMI Color Precision	4:02:02
HDMI Color Space	YUV
Audio
Local Audio Monitoring	Front panel audio monitor speaker with speaker control button, plus 6.35 mm headphone socket.
IP Video Compliance
SMPTE 2110-20 (Uncompressed Video)	IGMP v2
SMPTE 2110-21 (Traffic Shaping)	Sender: Narrow
	Receiver: Narrow, Wide Synchronous, Asynchronous
SMPTE 2110-30 (PCM)	Audio Conformance level: Level C
SMPTE 2110-40 (Ancillary Data)	Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M‑2, closed captioning and HDR static metadata.
Codec	Blackmagic IP10 codec used when converting 2160p59.94 and 2160p60 to 10G 2110 IP video.
Precision Time Protocol	IEEE 1588-2008 (PTP v2)
	ST 2059-1
	ST 2059-2
NMOS IS-04 Discovery and Registration	v1.3.2
	Peer-to-peer via mDNS/DNS‑SD
NMOS IS-05 Connection Management	v1.1.2
NMOS BCP-002-01	Natural Grouping
NMOS BCP-004-01	Receiver capabilities
Control

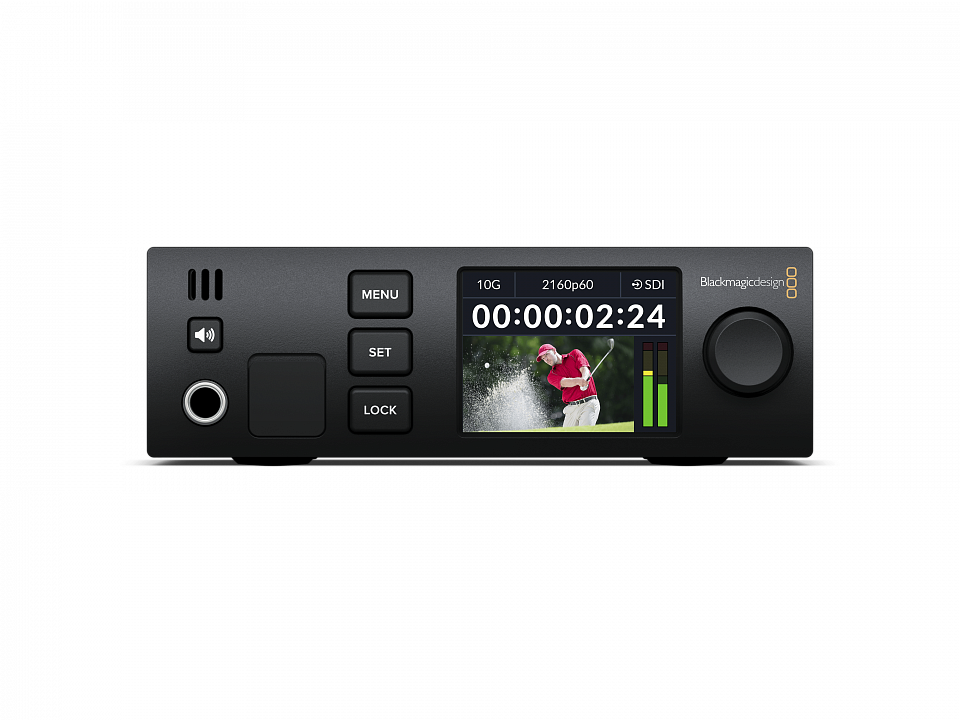

Built in Control Panel	Built in control panel including 4 buttons, spin knob control and 2.2 inch color display.
External Control	RJ-45 10Gb/s Ethernet and USB‑C.
	REST API over Ethernet for external control via HTTP when used with REST client applications.
Displays	Built in 2.2 inch LCD for monitoring video, audio and status plus menu settings.
Operating Systems
Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.
Windows 10 and 11.
Power Requirements
Power Supply	1 x Internal 100 - 240V AC 50/60Hz.
Power Supply	1 x IEC C14 socket for AC power.
	1 x Locking 5.5mm barrel +12V DC input for external power supply or battery use.
Power Usage	TBC
Physical Installation	One third rack unit width, 1 rack unit height.
Physical Specifications
Environmental Specifications
Operating Temperature	0° C to 40° C (32° - 104°F)
Storage Temperature	-20° to 45° C (-4° to 113° F)
Relative Humidity	0% to 90% non‑condensing
What's Included
Blackmagic 2110 IP SDI to HDMI 12G
Welcome wallet with QR code for software download
Warranty
1 Year Limited Manufacturer’s Warranty.

Подробные характеристики

109 940,06 ₽

Ожидается поступление

Добавить в корзину

Нет в наличии

Цена актуальна на 12.06.2026

Поделитесь с друзьями:

Печать Скопировать ссылку

Информация

О товаре

Основные сведения о товаре, его особенностях и комплектации

Вы получаете высочайшее качество преобразования между всеми стандартами видео SD, HD и Ultra HD с 3D LUT для точной калибровки дисплеев HDMI. Имеет удобный ЖК-дисплей на передней панели с отображением всех параметров видео и интуитивным меню, 2-канальные выходы XLR с возможностью дистанционного мониторинга качества звука, разъем для динамика и наушников.
