Видеомикшеры, коммутаторы

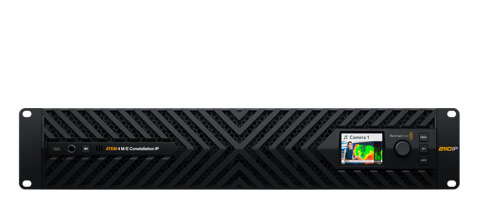

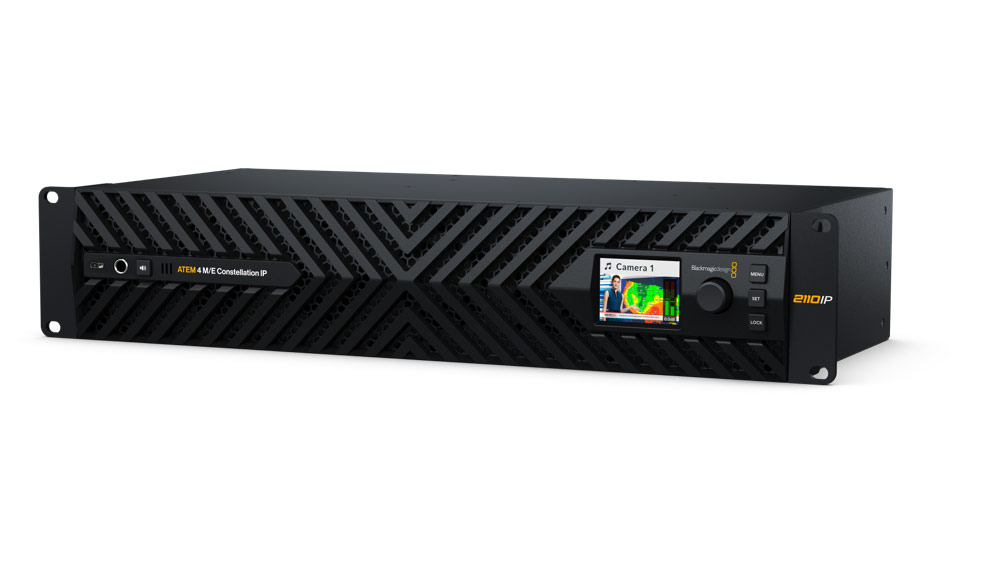

Blackmagic ATEM 4 M/E Constellation IP IP-микшер

Артикул: SWATEMSCN2/3ME4/IP. Код: ЦБ-00009890

Blackmagic ATEM 4 M/E Constellation IP IP-микшер

Connections
100G 2110 IP Networks	8 x 100G QSFP28 connections.
	Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks.
Senders and Receivers per 100G Pair	8 x Ultra HD
10G Control Network	2 x 10G RJ45 Ethernet for NMOS control plus loading media, saving and loading presets.
Reference Network	2 x RJ45 Ethernet for 2110 PTP clock.
1G Management	1 x RJ45 Ethernet. Supports 10/100/1000 BASE-T. For ATEM Setup utility and software updates.
Analog Audio Outputs	1 x 6.35 mm headphone jack.
Total Video Inputs	32
Total Video Outputs	32
Total Aux Outputs	32
Total Audio Outputs	1 x 6.35 mm headphone jack.
	1 x Speaker
Frame Rate and Format Converters	On all 32 inputs
Extra Audio Outputs	1 x 6.35 mm headphone jack. (the audio will be the mix of PGM plus engineering, production and side tone.)
	1 x built-in speaker.
Program Outputs	Any of the 32 outputs.
Preview Outputs	Any of the 32 outputs.
Multiview Outputs	4 of any of the 32 outputs.
Webcam Output	Rear USB-C supports 720p or 1080p at PGM frame.
Control Panel Connection	2 x 10G RJ45 Ethernet for panel connection, NMOS control plus loading media, saving and loading presets.
Internal Timecode Generator	Yes
Computer Interface	Rear USB-C supports USB 3.0 for external USB audio (Fairlight Live), webcam out, ATEM Setup utility and software updates.
	Front USB-C supports USB 2.0 for updates and setup only.
Power	2 x IEC C14 power inputs.
Standards
HD Video Standards	720p50, 720p59.94, 720p60
	1080i50, 1080i59.94, 1080i60
	1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
Ultra HD Video Standards	2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60.
SMPTE Compliance	SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022‑7
Video Sampling	4:02:02
Color Precision	10-bit.
IP Video Compliance
SMPTE 2110-20 (Uncompressed Video)	IGMP v2
SMPTE 2110-21 (Traffic Shaping)	Sender: Narrow
	Receiver: Narrow, Wide Synchronous, Asynchronous
SMPTE 2110-30 (PCM)	Audio Conformance level: Level C
SMPTE 2110-40 (Ancillary Data)	Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Codec	Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video.
Precision Time Protocol	IEEE 1588-2008 (PTP v2)
	ST 2059-1
	ST 2059-2
NMOS IS-04 Discovery and Registration	v1.3.2
	Peer-to-peer via mDNS/DNS-SD
NMOS IS-05 Connection Management	v1.1.2
NMOS BCP-002-01	Natural Grouping
NMOS BCP-004-01	Receiver capabilities
Product Specifics
Upstream Keyers	16
Downstream Keyers	4
Advanced Chroma Keyers	16
SuperSource	2
Talkback Support	Yes
Mix Minus Support	Yes
Linear/Luma Keyers	20
Transition Keyer (Stinger/DVE)	4 Stinger, 4 DVE.
Total Number of Layers	28
Pattern Generators	21
Color Generators	2
DVEs	4
Control	2 x 10G RJ45 Ethernet for panel connection, NMOS control plus loading media, saving and loading presets.
Routable Windows	64
Tally	Red for program and green for preview indication.
Windows Source Labels	Yes
Multi View Monitoring
Multi View Monitoring	4 x 16 Multi View pattern options for up to 64 total views.
Multi View Video Standard	Follows Switcher Standard.
Media Player
Media Players	4
Channels	Fill and key for each media player.
Media Pool Still Image Capacity	64
Media Pool Clip Capacity	4
Media Player Clip Length in 720 HD	3200 frames
Media Player Clip Length in 1080 HD	1600 frames
Media Player Clip Length in Ultra HD	400 frames
Media Pool Still Image Format	PNG, TGA, BMP, GIF, JPEG and TIFF.
Media Pool Video File Format	TGA Sequence.
Media Pool Audio File Format	WAV, MP3 and AIFF.
Display
Interface	Minimum monitor resolution of 1366 x 768.
Front panel	Built in HD LCD monitor for video, front USB-C connection for updates, setup and control, front speaker and headphone connection, menu control knob and set button, front panel lock button.
Processing
Processing Delay	TBC
Audio Mixer	68 Channel mixer.
	Fully integrates with Fairlight Live.
Selectable On/Off/Audio-Follow-Video.	Level and Peak metering.
Master gain control.	6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Down Conversion	None
Control
Front panel	Built in HD LCD monitor for video, front USB-C connection for updates, setup and control, front speaker and headphone connection, menu control knob and set button, front panel lock button.
Software
Control Panel Included	ATEM Software Control Panel included free for macOS 14.0 Sonoma, macOS 15.0 Sequoia or later and Windows 10 and 11.
Software Updates	Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.
Configuration	Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB‑C to chassis.
Operating Systems
Mac 15.0 Sequoia,
Mac 26.0 Tahoe or later.
Windows 10 and 11.
Windows 11 for ARM
Power Requirements
Power Supply	2 x 100 ‑ 240V AC 50/60Hz internal power supplies.
Power Inputs	2 x IEC C14 sockets.
Power Usage	TBC
Physical Installation
Physical Installation	2 rack units.
Environmental Specifications
Operating Temperature	0° to 40° C (32° to 104° F)
Storage Temperature	-20° to 60° C (-4° to 140° F)
Relative Humidity	0% to 90% non-condensing
What's Included
ATEM 4 M/E Constellation IP
Welcome wallet with QR code for software download
Warranty
1 Year Limited Manufacturer’s Warranty.

Подробные характеристики

1 352 317,02 ₽

Ожидается поступление

Добавить в корзину

Нет в наличии

Цена актуальна на 10.06.2026

Поделитесь с друзьями:

Печать Скопировать ссылку

Информация

О товаре

Основные сведения о товаре, его особенностях и комплектации

ATEM 4 M/E Constellation IP - новый высокопроизводительный видеомикшер с расширенным функционалом для производства контента в прямом эфире, который нативно поддерживает работу с протоколом передачи видео по IP-сетям SMPTE-2110 благодаря использованию 100-гигабитного Ethernet-подключения. Кроме того, все IP-соединения полностью зарезервированы и соответствуют стандарту SMPTE-2022-7.
Микшер имеет на борту 32 видеовхода и 32 видеовыхода, 32 AUX-выхода, 2 процессора SuperSource, DVE на каждую линейку, 16 хромакейеров ATEM с продвинутым функционалом, 4 процессора для мультиэкранного предпросмотра. Новинка становится оптимальным решением для масштабных прямых трансляций.
