Видеомикшеры, коммутаторы

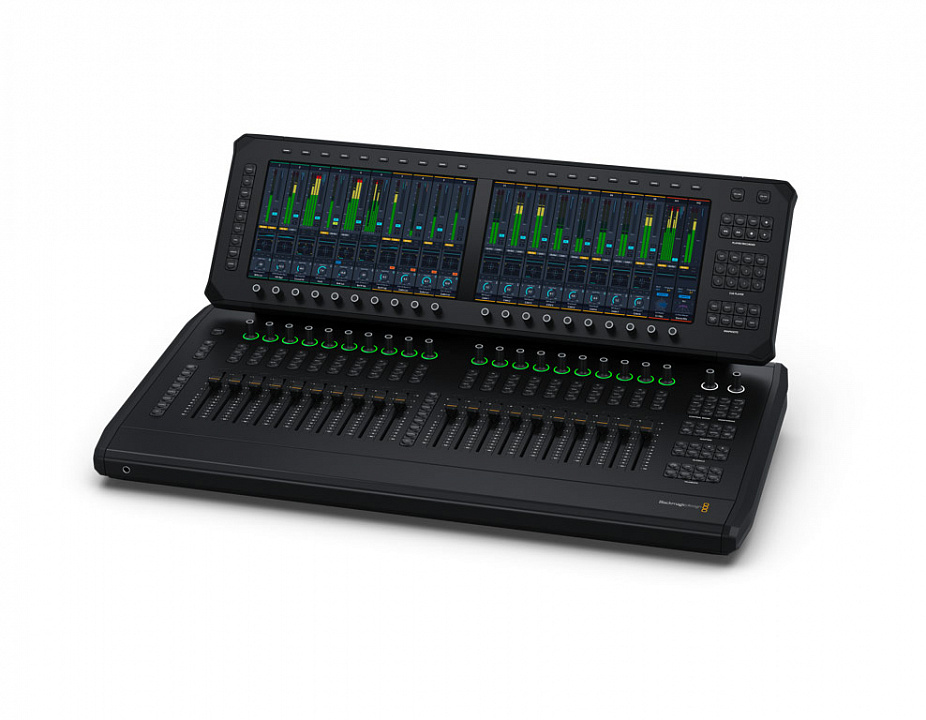

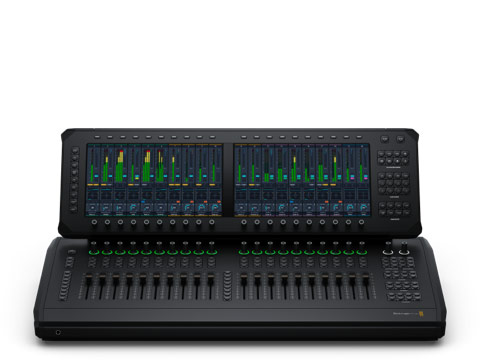

Blackmagic Fairlight Live Audio Panel 20 Панель управления

Артикул: DVFL/AAFLP20. Код: ЦБ-00009887

Blackmagic Fairlight Live Audio Panel 20 Панель управления

Connections
2110 IP Video and Audio Networks	2 x 10G RJ45 Ethernet connections.
Senders and Receivers per 10G Pair	Supports 2110 IP video and audio plus analog audio in and out of panel.
1G Control Network	1 x 1G RJ45 for computer connection, configuration and software updates.
HDMI Monitor Outputs	1
Analog Audio Inputs	1 x 3-pin XLR for mic level analog audio.
	1 x 5-pin XLR for talkback headset.
Analog Audio Outputs	2 x 3-pin XLR for line level analog audio.
	1 x 5-pin XLR for talkback headset.
	2 x 6.35mm headphone jack.
Computer Interface	1 x USB Type‑C for computer connection, software configuration and software updates.
HDMI Video Output	1 x HDMI Type A.
Power	2 x IEC C14 power inputs.
Display
Built in Display	2 x 11.6 inch 1920 x 1080 LCD touch screens.
HDMI Out	HD or Ultra HD
Video Standards	720p50, 720p59.94, 720p60
	1080i50, 1080i59.94, 1080i60
	1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
	2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Controls
Channel Faders	20 flying faders.
Channel Rotary Knobs	20 multi function rotary knobs with ring LED indicators.
Channel Control Buttons	Select, Solo and Mute for each channel.
Channel Focus	Processing and input controls for selected channel.
Contextual Rotary Knobs	20 rotary knobs to adjust associated parameters appearing on lower row of focus and view screens.
Contextual Buttons	20 buttons to activate functions or adjust parameters appearing on upper row of focus and view screens.
On Line Button	Online mode follows timecode from external source.
On Air Button	On Air mode locks panel.
Player/Recorder Keypad	Controls for the Player/Recorder support recording performances/rehearsals, playback for Virtual Sound Checks
Cue Player Keypad	Cue Player controls - Jingle/Cart player for SFX stingers plus supports MIDI cues for triggering external devices.
Snapshots Keypad	Store and recall mixer settings and configurations.
Control Room and Monitoring Keypad	Controls for source selection and monitor circuit selection.
Masters Keypad	Controls for master views and enabling masters on faders. View Only selection sends metering views to screen, when off selection targets faders.
Globals Keypad	Global controls include forward, back, undo and escape plus access the setup screen and 3 x USER defined buttons.
Talkback Keypad	Controls for talkback to 4 groups, direct to channel and ALL. Dedicated cue mode button plus access the talkback setup screen.
Talkback
Microphone	1 x built in talkback microphone.
Talkback Connections	1 x 5-pin XLR headset
	1 x 3-pin XLR Mic input
	2 x 6.35mm headphone sockets
	2 x 3-pin XLR audio monitor outputs.
Talkback Selection	Talkback groups, direct to channel, or all.
Talkback Groups	4
Software
Software Included	Fairlight Live
	Blackmagic OS
	Internal software upgrade via updater application.
Operating Systems
Mac 15.0 Sequoia,
Mac 26.0 Tahoe or later.
Windows 11
Settings Control
Fairlight Live software when connected by Ethernet or USB.
Power Requirements
Power Supply	2 x 100 ‑ 240V AC 50/60Hz internal power supplies.
Power Inputs	2 x IEC C14 sockets.
Power Usage	TBC
Environmental Specifications
Operating Temperature	0° to 40°C (32° to 104°F)
Storage Temperature	-20° to 60°C (-4° to 140°F)
Relative Humidity	0% to 90% non-condensing
What's Included
Fairlight Live Audio Panel 20
Welcome wallet with QR code for software download
Warranty
1 Year Limited Manufacturer’s Warranty.

Подробные характеристики

591 406,96 ₽

Ожидается поступление

Добавить в корзину

Нет в наличии

Цена актуальна на 11.06.2026

Поделитесь с друзьями:

Печать Скопировать ссылку

Информация

О товаре

Основные сведения о товаре, его особенностях и комплектации

Fairlight Live Audio Panel 20 аппаратная панель управления аудиомикшером.  Fairlight Live Audio Panel 20 - аппаратная панель с 20 моторизованными фейдерами и 2 большими сенсорными дисплеями для управления аудиомикшером Fairlight Live. Предназначена для сведения звука в реальном времени в небольших и средних студиях. Сенсорные дисплеи отображают данные о полосе звуковых каналов, уровнях звука, эквалайзере, динамической обработке и подключаемых интерфейсах.
