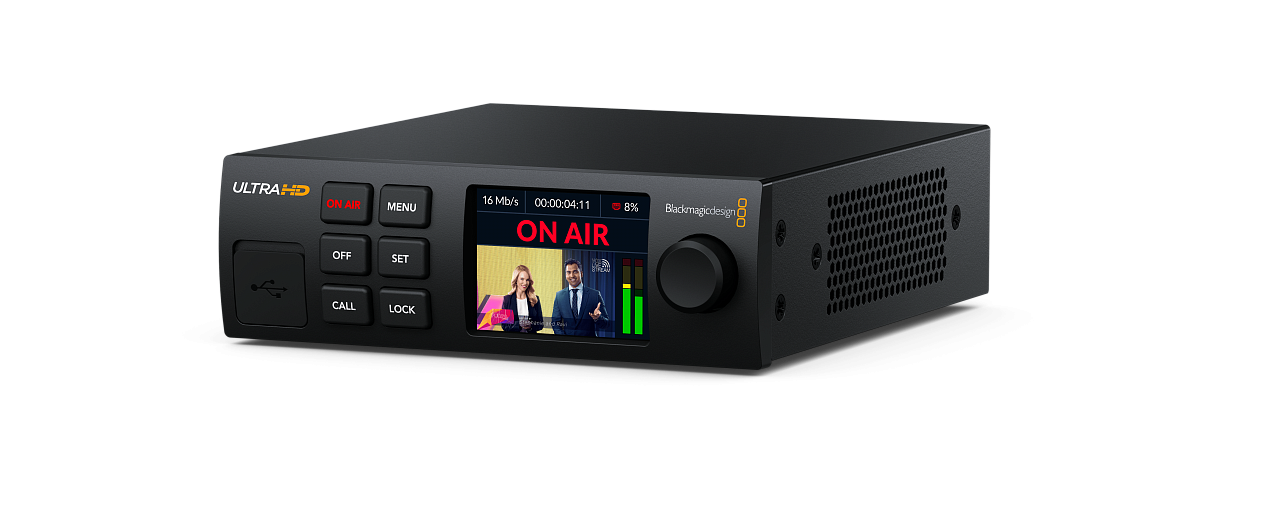

Blackmagic Streaming Encoder 4K Энкодер прямой трансляции
Артикул: BDLKWEB/D/SED4K. Код: ЦБ-00009074Мощный автономный потоковый кодер Blackmagic Design Streaming Encoder 4K позволяет выполнять потоковое вещание в форматах H.264 или H.265 через SRT или RTMP с прямой поддержкой совместимых сервисов и программного обеспечения, включая Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, AfreecaTV, Bilibili, DouYu, Weibo, Zoom, Skype, Microsoft Teams, QuickTime Player, FaceTime, OBS Studio, Open Broadcaster, VLC, Wirecast Play и Wowza Streaming Engine.
| Connections |
|
| SDI Video Inputs | 1 |
| SDI Loop Outputs | 1 |
| SDI Monitor Outputs | 1 |
| SDI Rates | 1.5G, 3G, 6G, 12G |
| HDMI Monitor Outputs | 1 |
| SDI Audio Inputs | 16 channels embedded audio. |
| SDI Audio Outputs | 16 channels embedded audio on Loop Out. |
| HDMI Audio Outputs | 2 channels embedded audio on Monitor Out. |
| Webcam Output | 1 x USB-C up to 2160p60 |
| Ethernet | Ethernet supports 10/100/1000 BASE-T for live streaming, configuration and software updates. |
|
|
|
| Standards |
|
| HD Video Input Standards | 720p50, 720p59.94, 720p60, |
|
|
1080i50, 1080i59.94, 1080i60, |
|
|
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, |
|
|
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
| 2K Video Standards | 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, |
|
|
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI |
| Ultra HD Video Input Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| 4K Video Standards | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI |
| SDI Compliance | SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B |
| Video Input Color Space | Rec. 709, Rec. 2020 |
| 3G SDI | Auto detects SMPTE level A or B on SDI input. |
| SDI and HDMI Monitor Out Video Standards | 1080p50, 1080p59.94, 1080p60 |
| Video Streaming Standards | 720p25, 720p30, 720p50, 720p60 |
|
|
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
|
|
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
|
|
|
| Streaming |
|
| Direct Streaming | Blackmagic Streaming Encoder 4K supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP) in H.264, and Secure Reliable Transport (SRT) in H.264 and H.265. |
| Closed Captions | Blackmagic Streaming Encoder 4K supports embedding CEA‑608 and CEA‑708 closed captions in your live RTMP stream. |
| Timecode | Support source timecode over RTMP and SRT streams. |
|
|
|
| Control |
|
| Control Panel | Built in control panel including 6 buttons, spin knob control and 2.2 inch color display. |
| Device Control | Front panel, USB‑C or Ethernet. |
| External Control | Supports remote camera control, color corrector, tally and talkback. |
|
|
REST API over Ethernet for external control via HTTP when used with REST client applications. |
|
|
|
| Displays |
|
| Built in 2.2 inch LCD for monitoring video, audio and status plus menu settings. |
|
|
|
|
| Software |
|
| Compatible Services and Software | Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, AfreecaTV, Bilibili, DouYu, Weibo, Zoom, Skype, Microsoft Teams, QuickTime Player, FaceTime, OBS Studio, Open Broadcaster, VLC, Wirecast Play, Wowza Streaming Engine. |
|
|
|
| Operating Systems |
|
| Mac 13.0 Ventura, |
|
| Mac 14.0 Sonoma or later. |
|
| Windows 10, 64-bit. |
|
| Windows 11. |
|
| Linux |
|
| Chrome OS |
|
|
|
|
| Power Requirements |
|
| Power Supply | 1 x Internal 100 - 240V AC. |
| 12V DC Input | 1 x 4-pin XLR for +12V DC input for external power supply or battery use. |
| Power Usage | 25 W |
|
|
|
| Physical Installation |
|
| Physical Installation | One third rack unit width, 1 rack unit height. |
|
|
|
| Environmental Specifications |
|
| Operating Temperature | 0° C to 40° C (32° - 104°F) |
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
|
|
|
| What's Included |
|
| Blackmagic Streaming Encoder 4K |
|
| Welcome wallet with QR code for software download |
|
|
|
|
| Warranty |
|
| 3 Year Limited Manufacturer’s Warranty. |
|
Цена актуальна на 12.06.2026
Поделитесь с друзьями:
Информация
О товаре
Основные сведения о товаре, его особенностях и комплектации
Мощный автономный потоковый кодер Blackmagic Design Streaming Encoder 4K позволяет выполнять потоковое вещание в форматах H.264 или H.265 через SRT или RTMP с прямой поддержкой совместимых сервисов и программного обеспечения, включая Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, AfreecaTV, Bilibili, DouYu, Weibo, Zoom, Skype, Microsoft Teams, QuickTime Player, FaceTime, OBS Studio, Open Broadcaster, VLC, Wirecast Play и Wowza Streaming Engine.
Пользователи могут осуществлять стриминг видео через встроенный порт Ethernet RJ45 с поддержкой 10/100/1000BASE-T, подключаться через USB-C для привязки к высокоскоростным телефонам 5G, 4G.

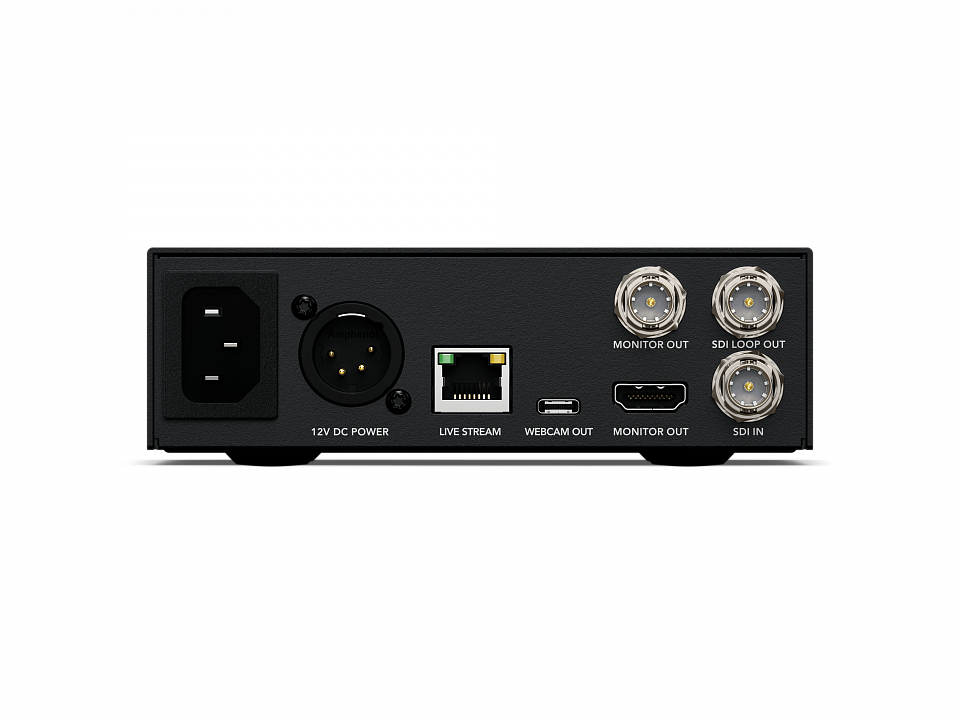

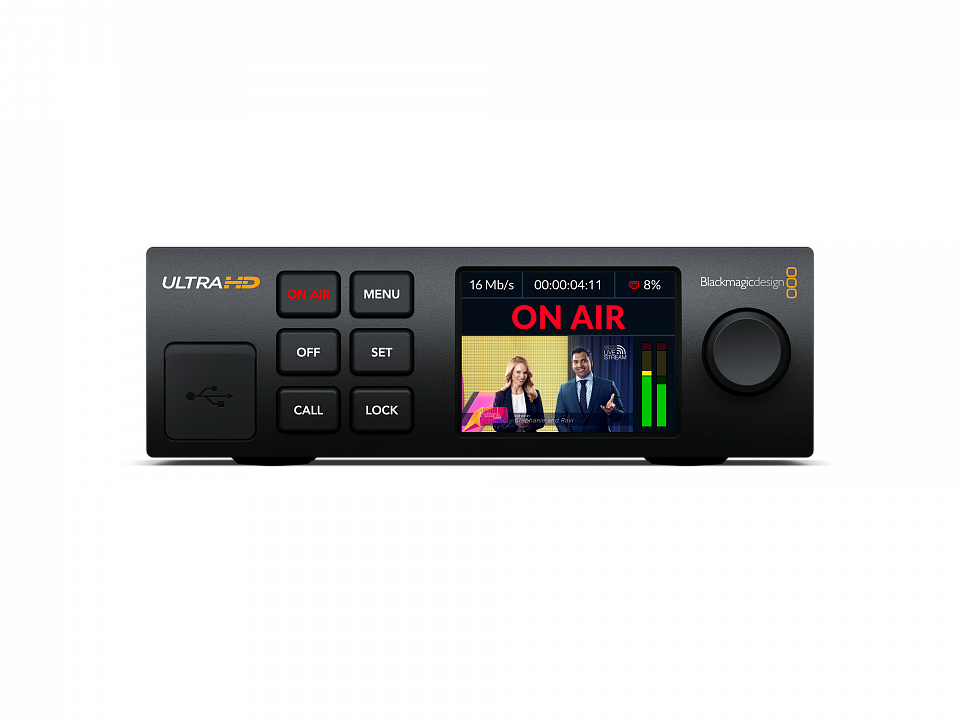

Кодер оснащен интерфейсом 12G-SDI, поддерживающим разрешения до DCI 4K60 через вход SDI и выход SDI loop, а также выходы SDI и HDMI для мониторов. Видео, аудио, статус настройки меню можно отслеживать на встроенном 2,2-дюймовом ЖК-дисплее. Есть возможность подключить устройство к компьютеру в качестве веб-камеры через USB-C на задней панели. На фронтальной панели расположены 6 кнопок и удобный вращающийся регулятор для тактильного управления, питание устройства осуществляется через порты 100-240 В переменного тока и 12 В постоянного тока с 4-контактными разъемами XLR.
Пользователи могут осуществлять стриминг видео через встроенный порт Ethernet RJ45 с поддержкой 10/100/1000BASE-T, подключаться через USB-C для привязки к высокоскоростным телефонам 5G, 4G.
Кодер оснащен интерфейсом 12G-SDI, поддерживающим разрешения до DCI 4K60 через вход SDI и выход SDI loop, а также выходы SDI и HDMI для мониторов. Видео, аудио, статус настройки меню можно отслеживать на встроенном 2,2-дюймовом ЖК-дисплее. Есть возможность подключить устройство к компьютеру в качестве веб-камеры через USB-C на задней панели. На фронтальной панели расположены 6 кнопок и удобный вращающийся регулятор для тактильного управления, питание устройства осуществляется через порты 100-240 В переменного тока и 12 В постоянного тока с 4-контактными разъемами XLR.
Подробно
Технические характеристики
Точные данные о товаре
| Connections |
|
| SDI Video Inputs | 1 |
| SDI Loop Outputs | 1 |
| SDI Monitor Outputs | 1 |
| SDI Rates | 1.5G, 3G, 6G, 12G |
| HDMI Monitor Outputs | 1 |
| SDI Audio Inputs | 16 channels embedded audio. |
| SDI Audio Outputs | 16 channels embedded audio on Loop Out. |
| HDMI Audio Outputs | 2 channels embedded audio on Monitor Out. |
| Webcam Output | 1 x USB-C up to 2160p60 |
| Ethernet | Ethernet supports 10/100/1000 BASE-T for live streaming, configuration and software updates. |
|
|
|
| Standards |
|
| HD Video Input Standards | 720p50, 720p59.94, 720p60, |
|
|
1080i50, 1080i59.94, 1080i60, |
|
|
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, |
|
|
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
| 2K Video Standards | 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, |
|
|
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI |
| Ultra HD Video Input Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| 4K Video Standards | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI |
| SDI Compliance | SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B |
| Video Input Color Space | Rec. 709, Rec. 2020 |
| 3G SDI | Auto detects SMPTE level A or B on SDI input. |
| SDI and HDMI Monitor Out Video Standards | 1080p50, 1080p59.94, 1080p60 |
| Video Streaming Standards | 720p25, 720p30, 720p50, 720p60 |
|
|
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
|
|
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
|
|
|
| Streaming |
|
| Direct Streaming | Blackmagic Streaming Encoder 4K supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP) in H.264, and Secure Reliable Transport (SRT) in H.264 and H.265. |
| Closed Captions | Blackmagic Streaming Encoder 4K supports embedding CEA‑608 and CEA‑708 closed captions in your live RTMP stream. |
| Timecode | Support source timecode over RTMP and SRT streams. |
|
|
|
| Control |
|
| Control Panel | Built in control panel including 6 buttons, spin knob control and 2.2 inch color display. |
| Device Control | Front panel, USB‑C or Ethernet. |
| External Control | Supports remote camera control, color corrector, tally and talkback. |
|
|
REST API over Ethernet for external control via HTTP when used with REST client applications. |
|
|
|
| Displays |
|
| Built in 2.2 inch LCD for monitoring video, audio and status plus menu settings. |
|
|
|
|
| Software |
|
| Compatible Services and Software | Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, AfreecaTV, Bilibili, DouYu, Weibo, Zoom, Skype, Microsoft Teams, QuickTime Player, FaceTime, OBS Studio, Open Broadcaster, VLC, Wirecast Play, Wowza Streaming Engine. |
|
|
|
| Operating Systems |
|
| Mac 13.0 Ventura, |
|
| Mac 14.0 Sonoma or later. |
|
| Windows 10, 64-bit. |
|
| Windows 11. |
|
| Linux |
|
| Chrome OS |
|
|
|
|
| Power Requirements |
|
| Power Supply | 1 x Internal 100 - 240V AC. |
| 12V DC Input | 1 x 4-pin XLR for +12V DC input for external power supply or battery use. |
| Power Usage | 25 W |
|
|
|
| Physical Installation |
|
| Physical Installation | One third rack unit width, 1 rack unit height. |
|
|
|
| Environmental Specifications |
|
| Operating Temperature | 0° C to 40° C (32° - 104°F) |
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
|
|
|
| What's Included |
|
| Blackmagic Streaming Encoder 4K |
|
| Welcome wallet with QR code for software download |
|
|
|
|
| Warranty |
|
| 3 Year Limited Manufacturer’s Warranty. |
|
