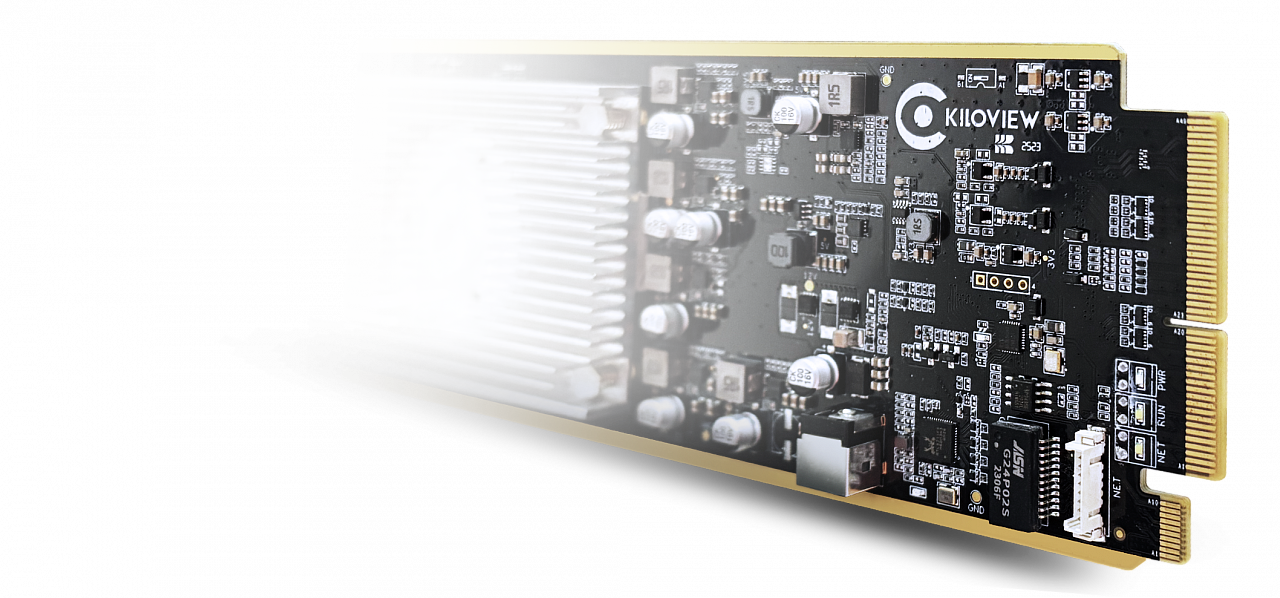

FMG-400 Media Gateway Service Card мультимедийный ip шлюз
| Streaming Protocol Input/Output | NDI、NDI HX、SRT、RTMP、RTSP、RTP、UDP、HLS(More to come with customizable SIP/GB-T28281 protocol conversion) |
| Video Decoding Formats | H.264 / H.265 / SpeedHQ (NDI High-bandwidth) |
| Maximum Video Encoding Performance | H.264/H.265 Encoding: 4K@60Hz, 200Mbps @ Level 5.1 Main Tier |
| ITU-T H.264 Encoding: High Profile/Main Profile/Baseline Profile @ Level 5.2 | |
| Audio Decoding / Audio Bitrate Range | 8/16/24bit 8k~192kHz pcm |
| Grid Support | Supports up to 4-grid layouts (capable of encoding/streaming a single multi-screen video signal) |
| *Note: This feature is unavailable in the current version and will be supported in future updates | |
| Management | Web page/ KiloLink Server Pro |
| Processor | 8-core ARM64 high-performance processor (Cortex A73 @ 1.8GHz) |
| Memory | 12GB DDR4 |
| Storage | 16GB eMMC |
| OS/Software | Linux 5.10 / KiloLink Server RF version |
| Management and Control | Web / HTTP API |
| Dimensions | 483mm x 487mm x 88mm |
| [Standard 2RU] | |
| Weight | 500g |
| Cooling | Active fan cooling / Automatic temperature control |
| Maximum Power Consumption | ≤ 6W |
Цена актуальна на 31.05.2026
Основные сведения о товаре, его особенностях и комплектации
Точные данные о товаре
| Streaming Protocol Input/Output | NDI、NDI HX、SRT、RTMP、RTSP、RTP、UDP、HLS(More to come with customizable SIP/GB-T28281 protocol conversion) |
| Video Decoding Formats | H.264 / H.265 / SpeedHQ (NDI High-bandwidth) |
| Maximum Video Encoding Performance | H.264/H.265 Encoding: 4K@60Hz, 200Mbps @ Level 5.1 Main Tier |
| ITU-T H.264 Encoding: High Profile/Main Profile/Baseline Profile @ Level 5.2 | |
| Audio Decoding / Audio Bitrate Range | 8/16/24bit 8k~192kHz pcm |
| Grid Support | Supports up to 4-grid layouts (capable of encoding/streaming a single multi-screen video signal) |
| *Note: This feature is unavailable in the current version and will be supported in future updates | |
| Management | Web page/ KiloLink Server Pro |
| Processor | 8-core ARM64 high-performance processor (Cortex A73 @ 1.8GHz) |
| Memory | 12GB DDR4 |
| Storage | 16GB eMMC |
| OS/Software | Linux 5.10 / KiloLink Server RF version |
| Management and Control | Web / HTTP API |
| Dimensions | 483mm x 487mm x 88mm |
| [Standard 2RU] | |
| Weight | 500g |
| Cooling | Active fan cooling / Automatic temperature control |
| Maximum Power Consumption | ≤ 6W |
