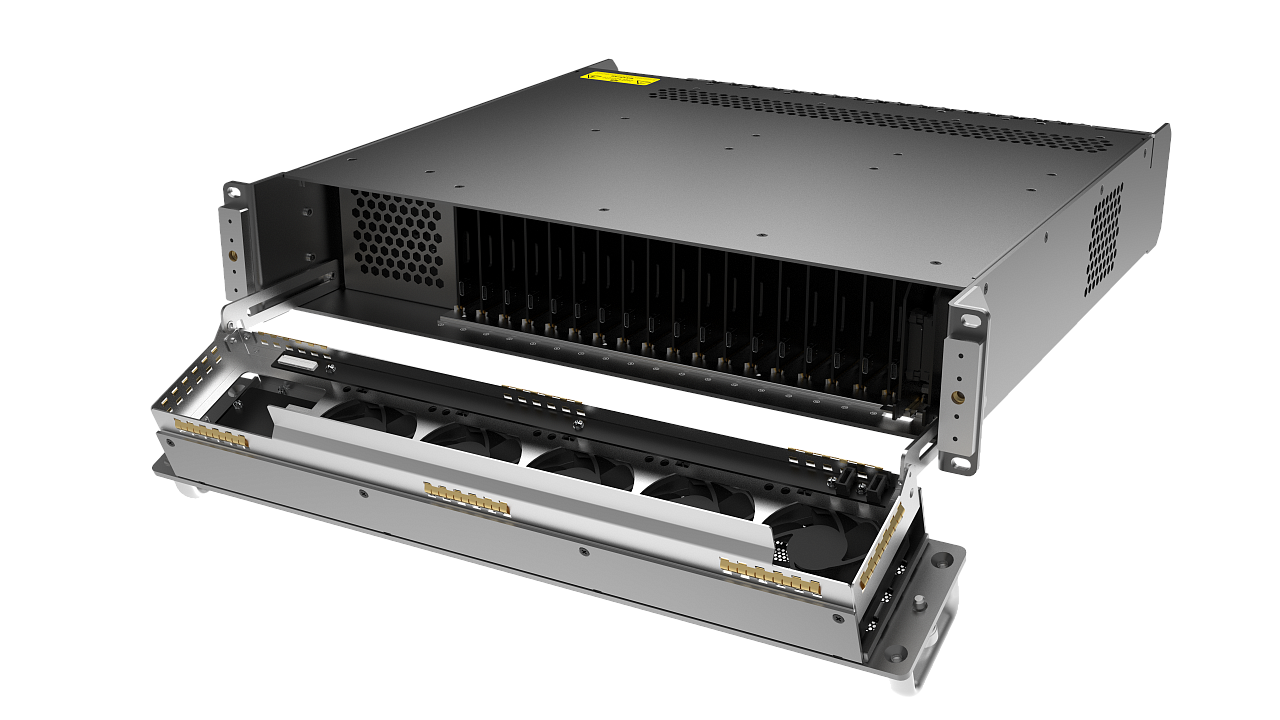

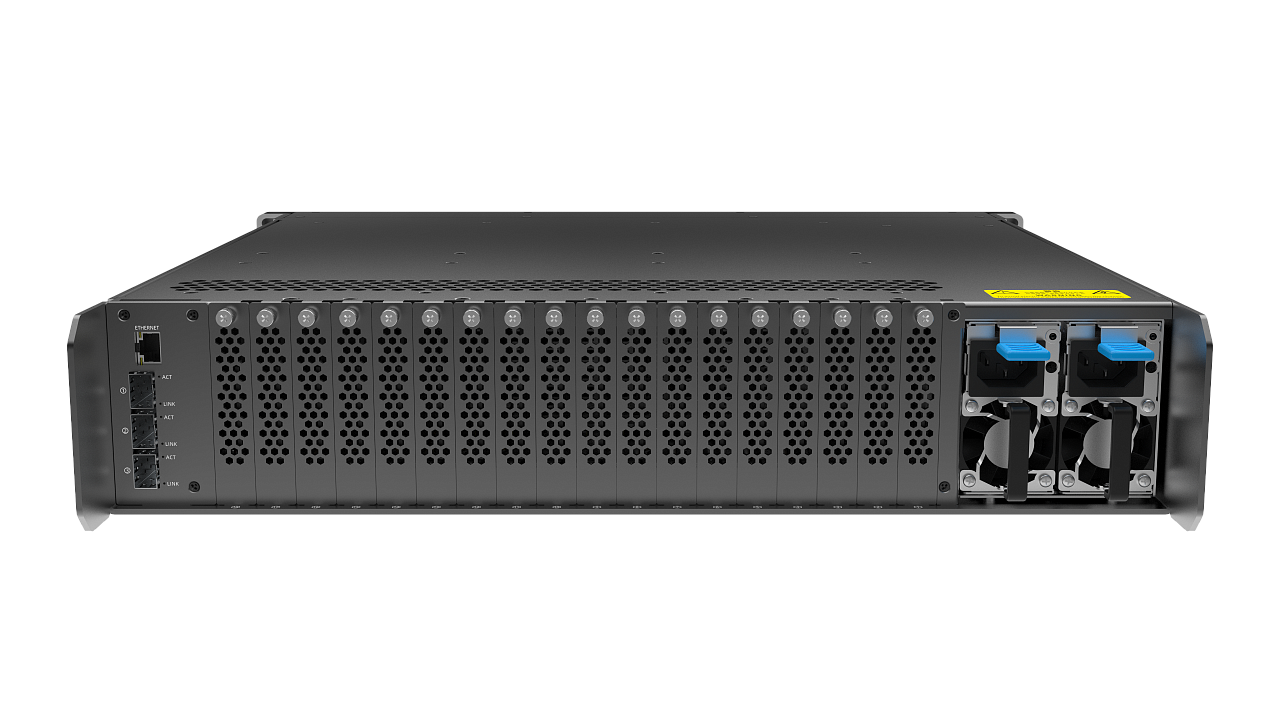

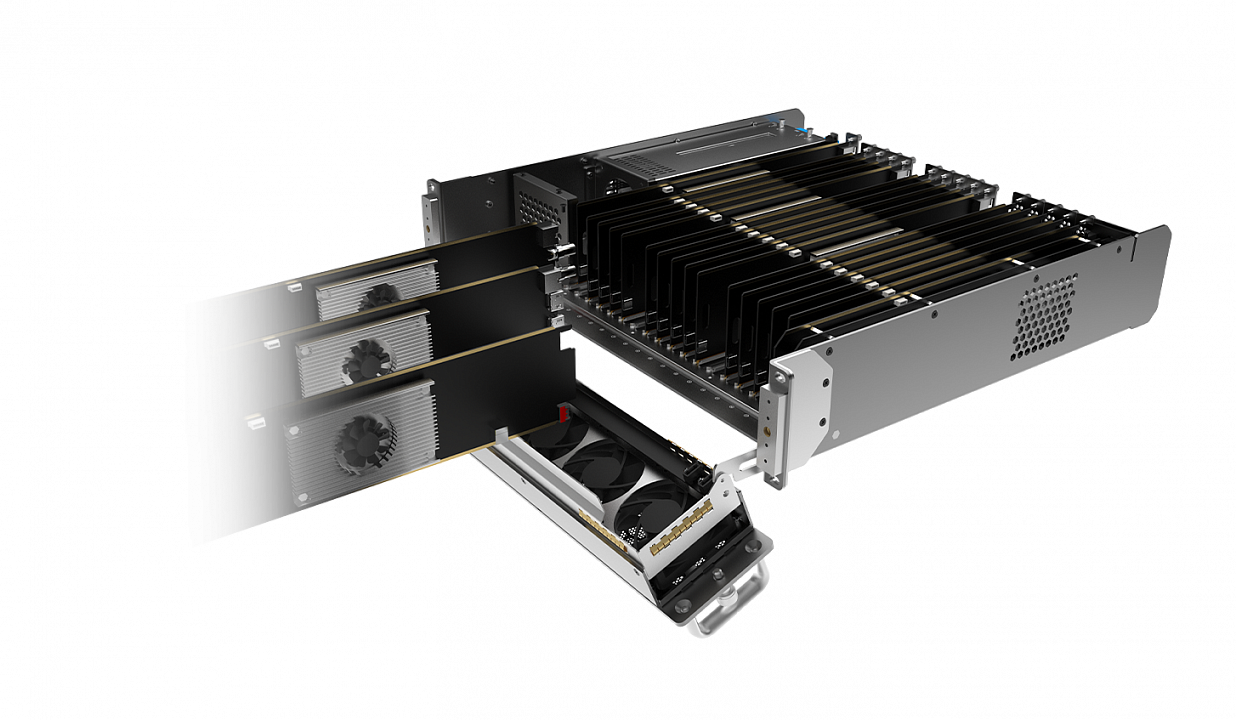

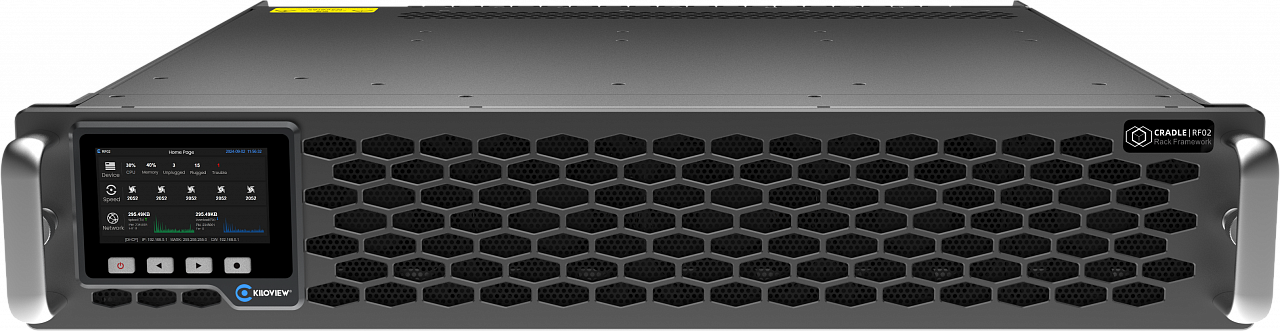

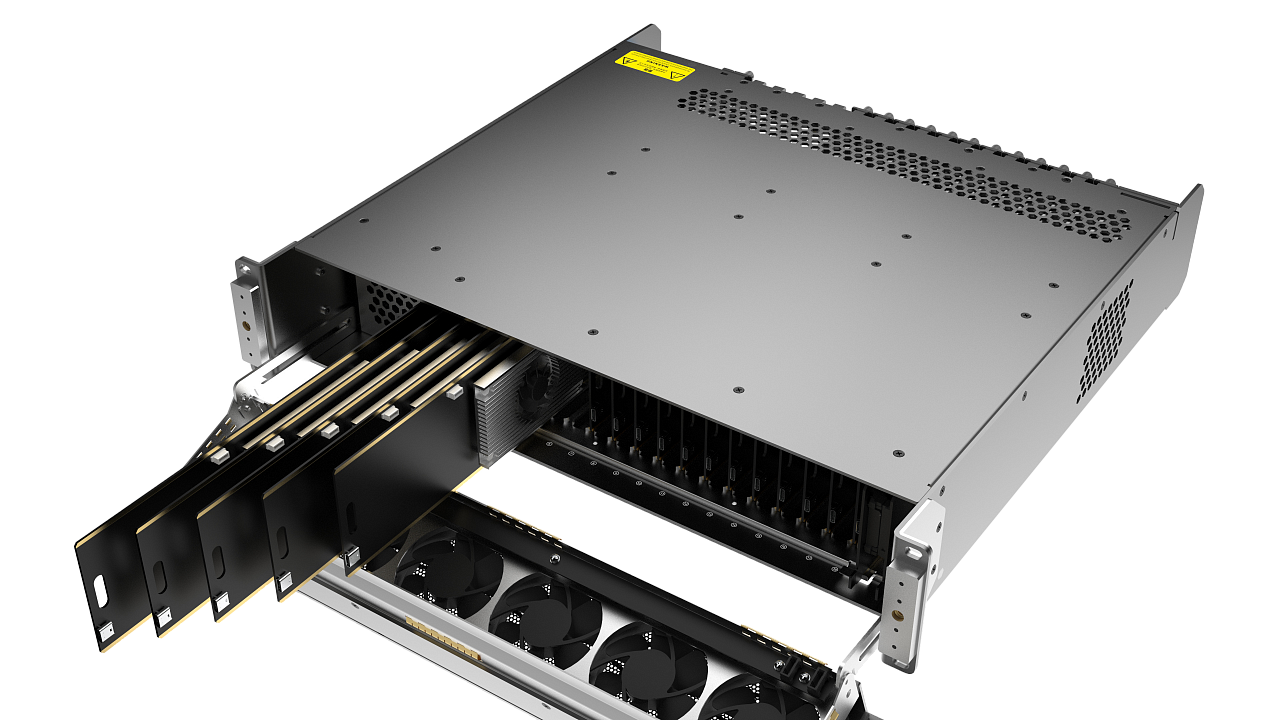

Kiloview RF02 – процессор с определяемым функционалом (и расширяемым набором функций), который вмещает в себя до 18 модульных плат. Это не просто рэковая корзина, а унифицированный центр управления видеосигналами.
| Main Controller Module | ||
| Processor | 8-core ARM64 high-performance processor (Cortex) A73@1.8GHz | |
| Memory | 12GB DDR4 | |
| Storage | 128GB EMMC | |
| Operating System /Software | Linux 5.10/KiloLink Server Pro RF version | |
| Management and Control | Web/ HTTP API | |
| Network Switch Module | ||
| Service Cards Connection | 18 x 1Gbps/2.5Gbps Adaptive Ethernet (Slot1/2 can support up to 10Gbps) | |
| External Connection | 3 x 10Gbps SFP+ Optical Ports (IEEE 802.3ae) 1 x 10Gbps RJ45 Ethernet port | |
| Type | Three-layer managment switch/VLAN support | |
| Switching Capacity | 120Gbps | |
| Overall Chassis | ||

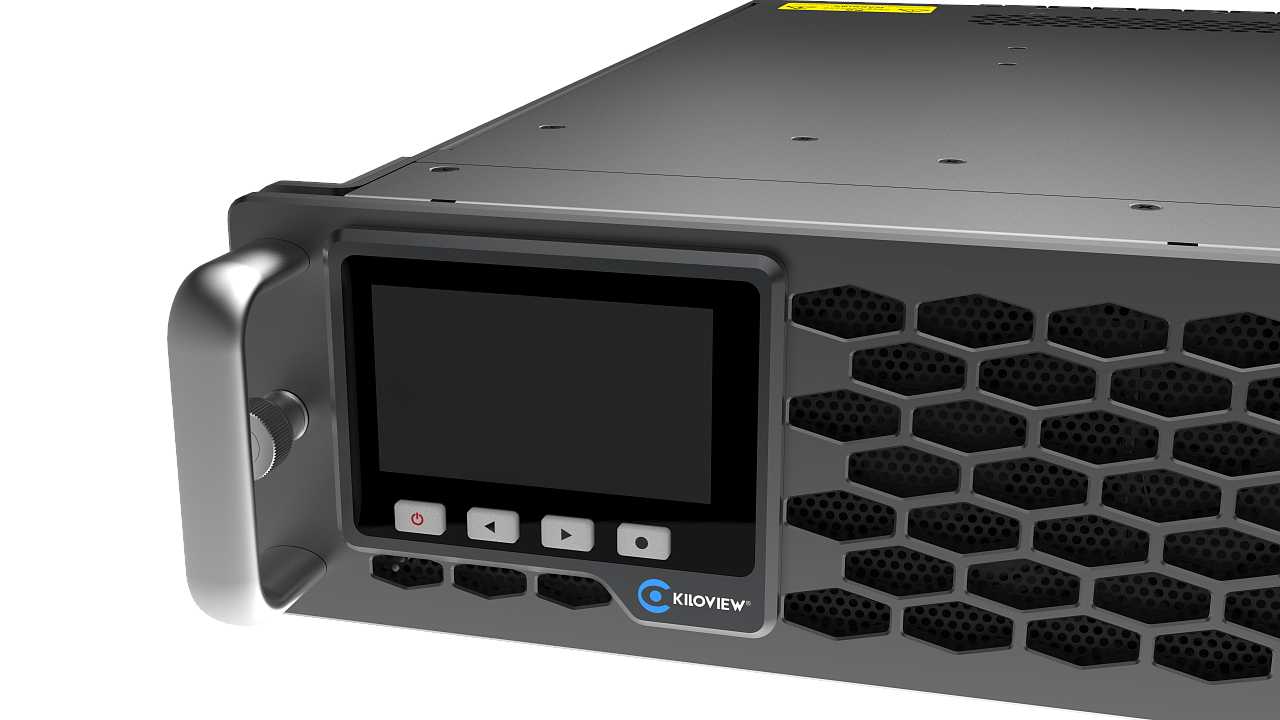

| Display | 3-inch LCD color display (non-touchable) | |
| Buttons | 4 (Power/Flip left/Flip right/Select) | |
| External Connection | 3 x 10Gbps SFP+ Optical Ports | |
| 1 x 10Gbps RJ45 Ethernet port | ||
| Heat dissipation | Self-Adjust heat dissipation/ Auto-temp control | |

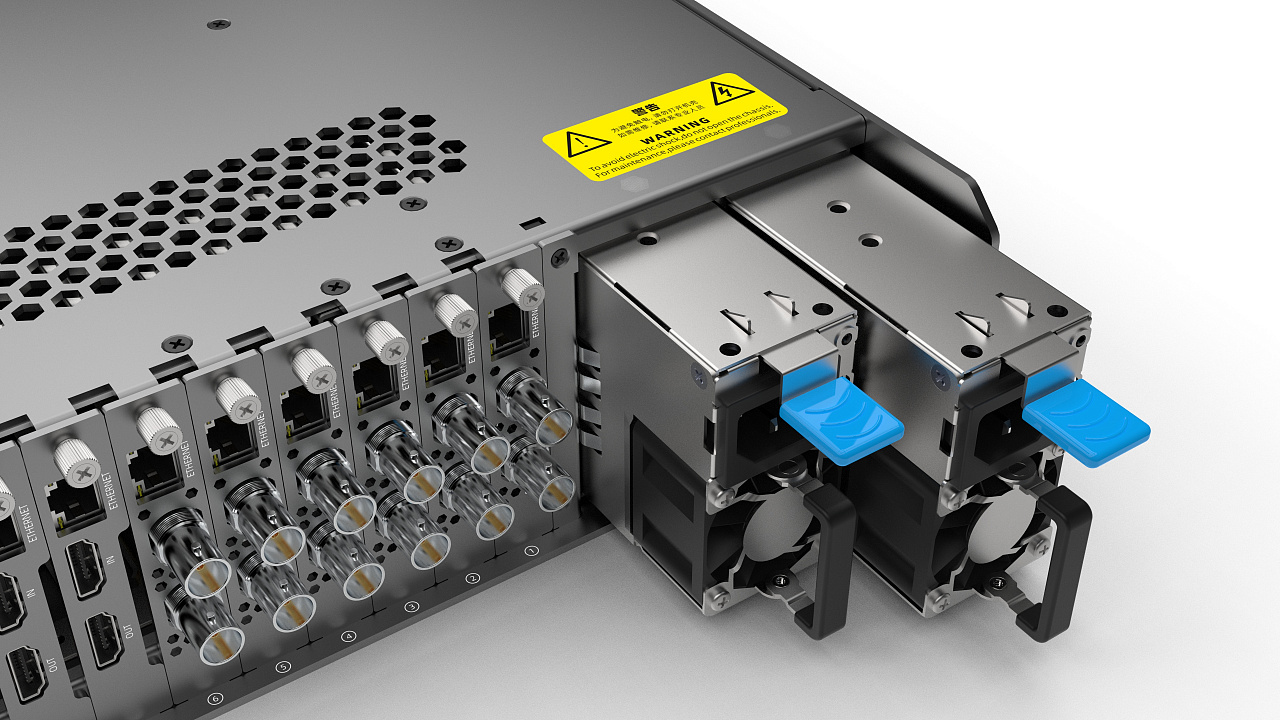

| Power supply |
Dual hot-swappable modular power supplies with redundant backup (configurable to single power mode) Single module specifications: AC 100-240V, 7A(Max), 60/50Hz, 500W Max |
|
| Dimensions | 483mm x 487mm x 88 mm (2RU) | |
| Working Temperature | -10°C to 50°C | |
| Card Functions & Expansion Capabilities | ||
| FN50/FN-60 | Encoding/Decoding Performance | Up to 4K video encoding and decoding |
| NDI Support |
Supports NDI High Bandwidth Supports NDI HX and NDI HX3 Supports NDI 6 |
|
| Protocol Compatibility | Supports SRT/RTMP/RTSP/HLS/UDP/RTP protocols | |
| Image quality | Supports 4:2:2 10bit HDR | |
| Internet transmission | NDI Bridge Utility | |
| FMG-400 | Encoding/Decoding Performance |
Supports 1-channel 4K P60 or 4-channel 1080P60 video Cross conversion between H.264, H.265 and SpeedHQ Supports 4K and multi-channel 1080P playback |
| Audio Processing Capability | Cross conversion between PCM, AAC, and G.711 | |
| Streaming Protocol Support |
Supports NDI HB/NDI HX/SRT/RTMP/RTSP/RTP/UDP/HLS Supports more than 50 concurrent connections |
|
| Stream Transmission |
Supports dual-stream transmission modes (push/pull) and allows unicast (point-to-point) and multicast (one-to-many) Supports single signal source input with multiple protocol outputs, or multiple outputs within the same protocol (*Note: The final capabilities will be determined by the final official release.) |
|
Цена актуальна на 31.05.2026
Чем интересовались другие пользователи, смотревшие данный продукт
Вернуться в каталогRF02 Адаптер питания для RF02

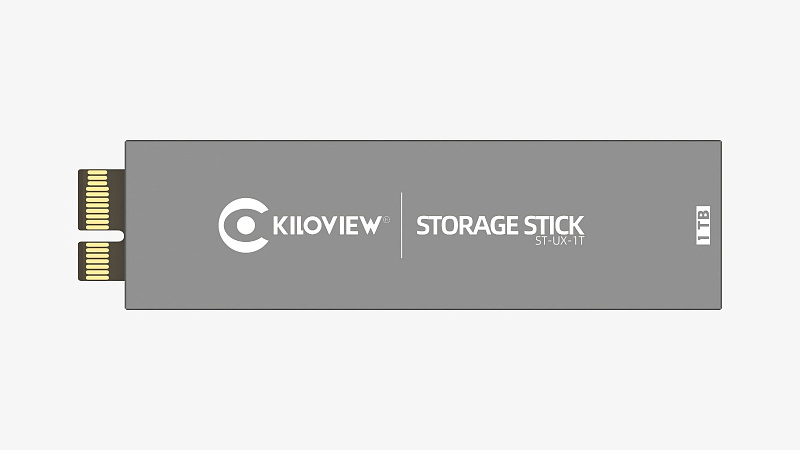

SSD Driver 1TB Драйвер
