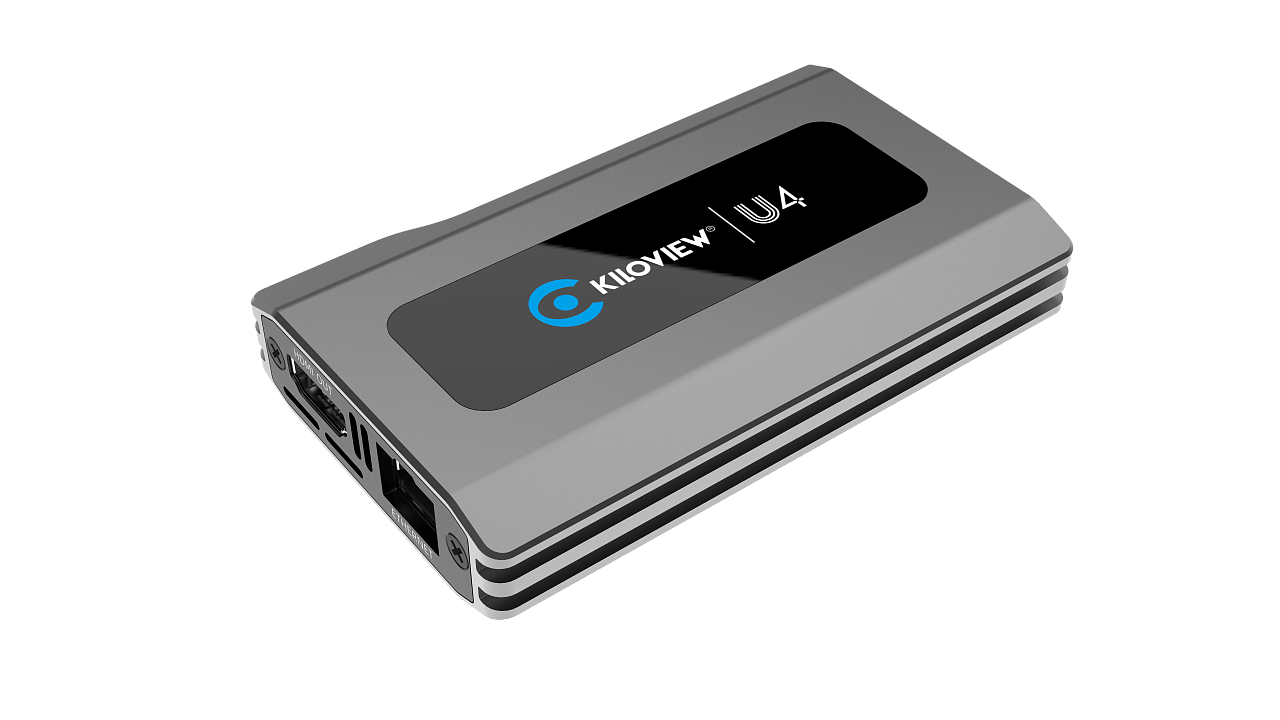

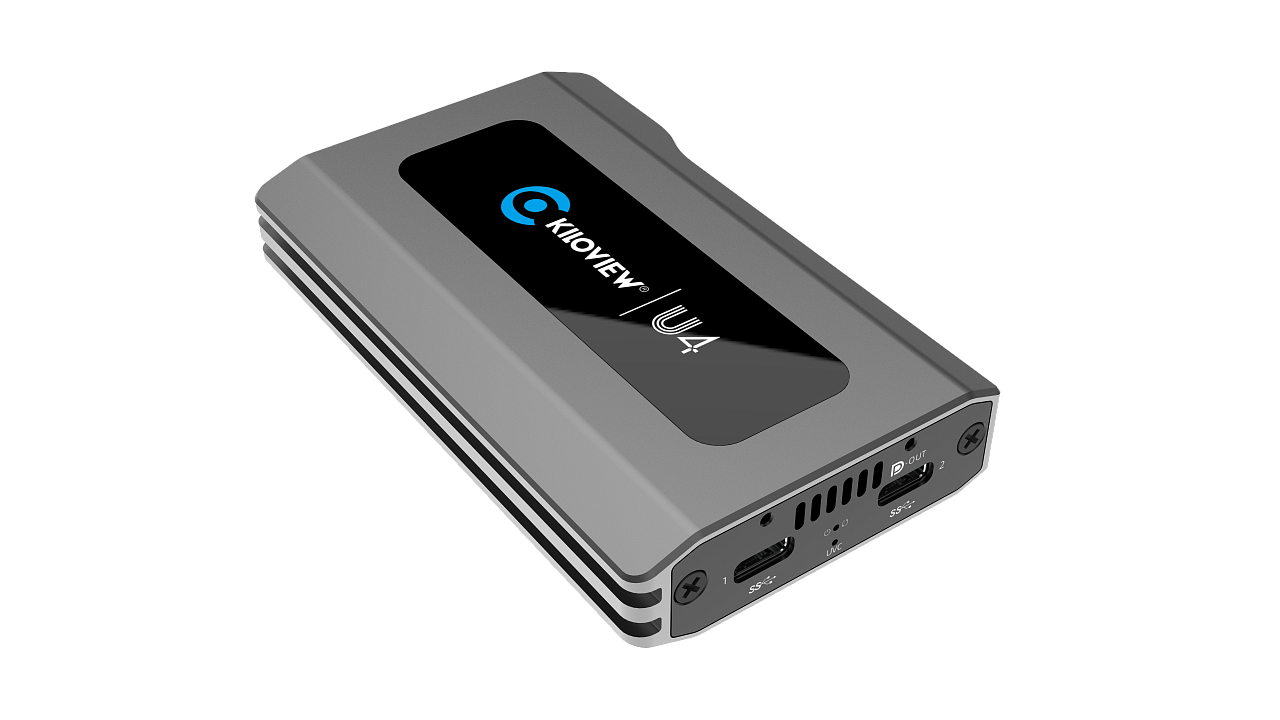

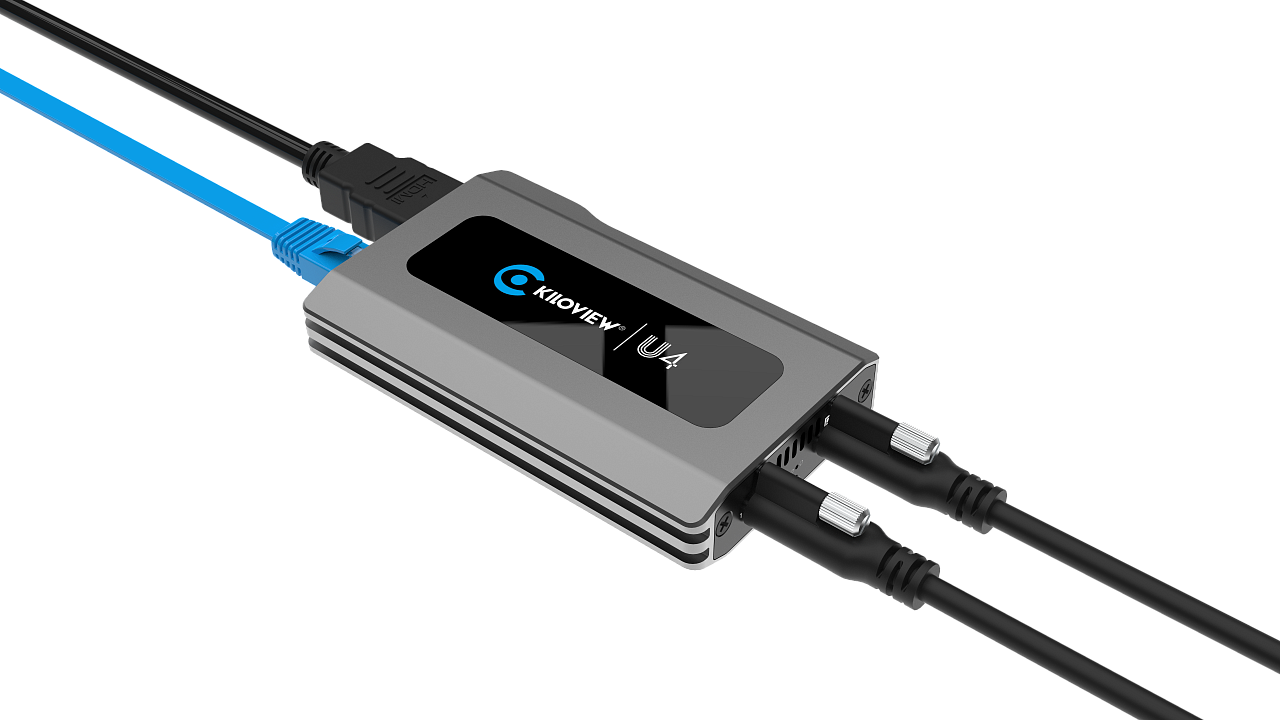

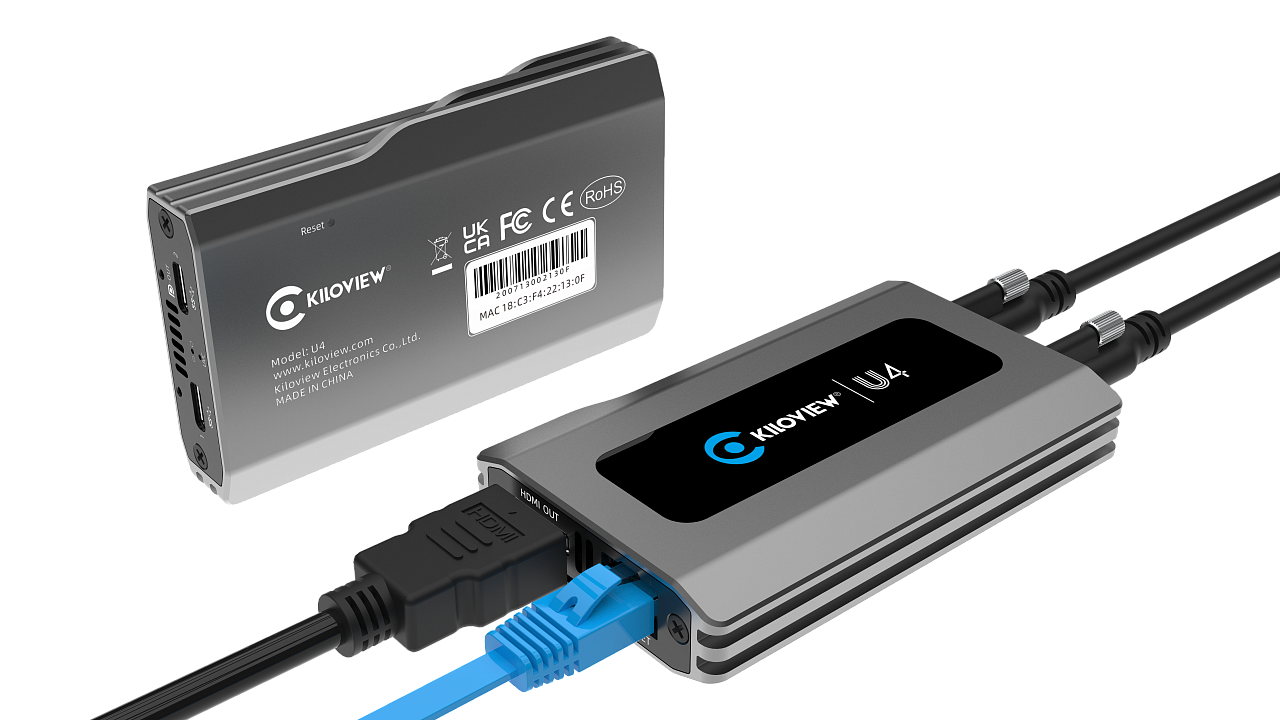

Kiloview U4 IP Video Dock док станция
| Supported Protocols | NDI High Bandwidth, NDI HX2, NDI HX3, SRT, RTSP, RTMP, UDP, RTP, HLS, and more |
| Decoding Capability | Decoding of NDI High Bandwidth, H.264, and H.265 video sources up to 4K60 |
| Video Outputs | Same-source output via USB, HDMI, and DisplayPort: USB UVC/UAC: up to 4K60 HDMI / DisplayPort: up to 4K60 HDMI and DP cannot output 4K60 simultaneously; only one 4K output is supported when both are connected. |
| Interfaces |
2 × USB 3.0 Type-C 1 × HDMI 2.1 1 × USB-C port supports DisplayPort Alt Mode output |
| Management | Web UI control and centralized management via KiloLink Server Pro |
| Firmware Upgrade |
Web UI or remote upgrade via KiloLink Server Pro Forced USB flash drive upgrade supported for system recovery |
| DHCP | Supported |
| Ethernet | 1 × RJ45, 10/100/1000 Mbps Base-T |
| USB NET | Supports USB virtual network adapter |
| Power Supply |
Dual USB Type-C power input supported USB PD power supported, up to 25W |
| Indicators |
1 × Power / running indicator 1 × Warning/Error LED |
| Dimensions | 100 mm × 62 mm × 18 mm |
Цена актуальна на 30.08.2026
Основные сведения о товаре, его особенностях и комплектации
Точные данные о товаре
| Supported Protocols | NDI High Bandwidth, NDI HX2, NDI HX3, SRT, RTSP, RTMP, UDP, RTP, HLS, and more |
| Decoding Capability | Decoding of NDI High Bandwidth, H.264, and H.265 video sources up to 4K60 |
| Video Outputs | Same-source output via USB, HDMI, and DisplayPort: USB UVC/UAC: up to 4K60 HDMI / DisplayPort: up to 4K60 HDMI and DP cannot output 4K60 simultaneously; only one 4K output is supported when both are connected. |
| Interfaces |
2 × USB 3.0 Type-C 1 × HDMI 2.1 1 × USB-C port supports DisplayPort Alt Mode output |
| Management | Web UI control and centralized management via KiloLink Server Pro |
| Firmware Upgrade |
Web UI or remote upgrade via KiloLink Server Pro Forced USB flash drive upgrade supported for system recovery |
| DHCP | Supported |
| Ethernet | 1 × RJ45, 10/100/1000 Mbps Base-T |
| USB NET | Supports USB virtual network adapter |
| Power Supply |
Dual USB Type-C power input supported USB PD power supported, up to 25W |
| Indicators |
1 × Power / running indicator 1 × Warning/Error LED |
| Dimensions | 100 mm × 62 mm × 18 mm |
