SDI-HDMI

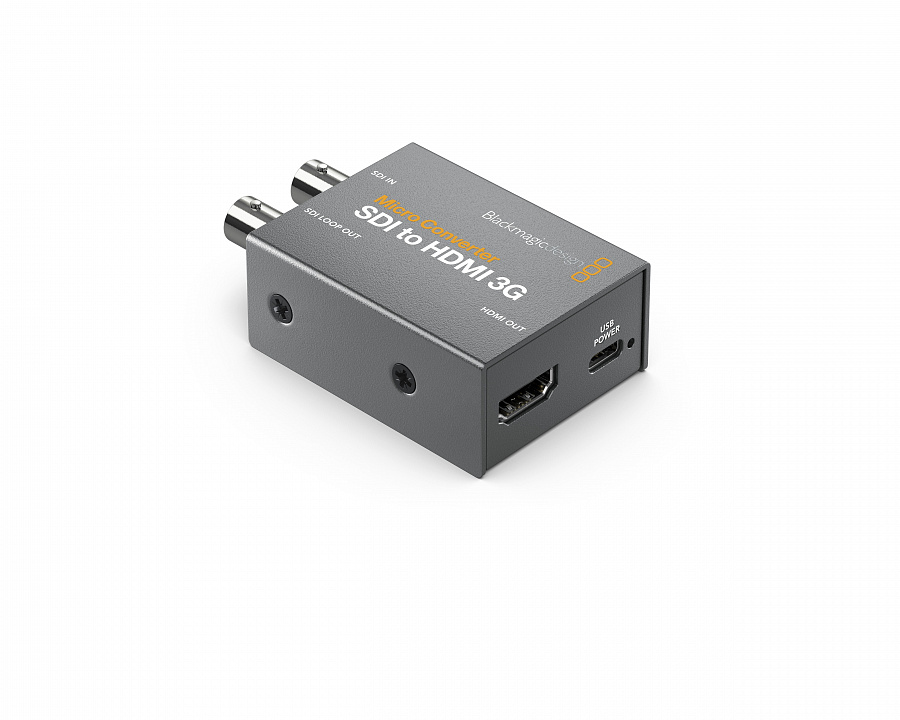

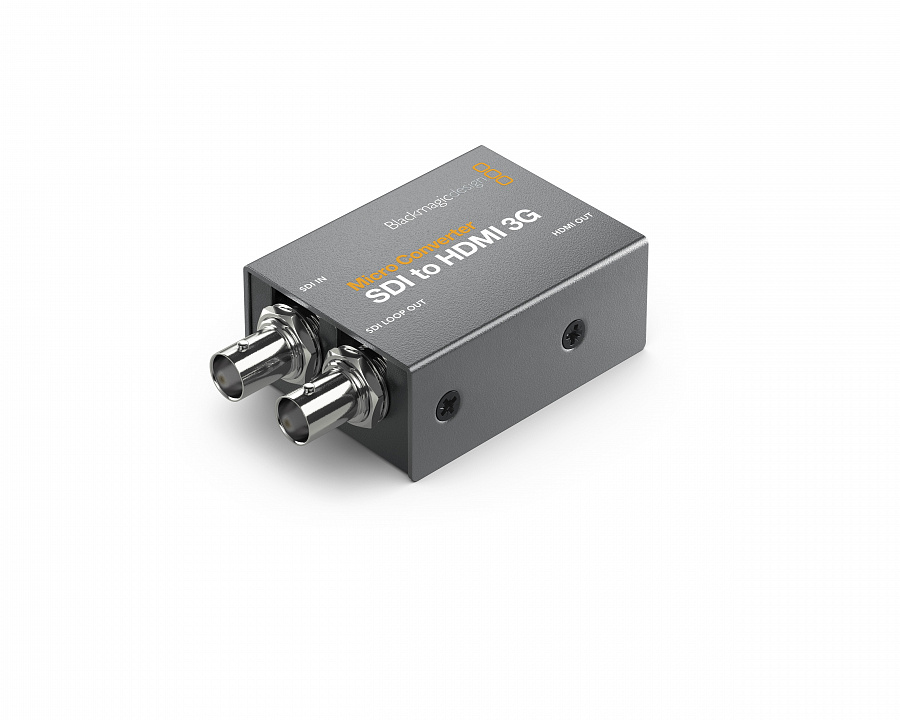

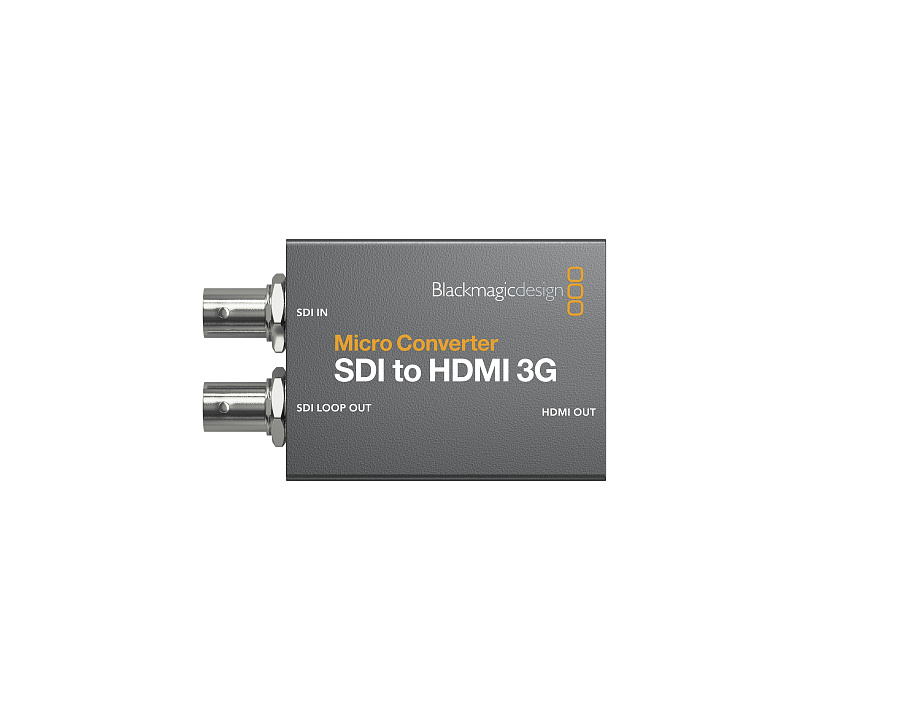

Micro Converter SDI to HDMI 3G микро-конвертер

Артикул: CONVCMIC/SH03G. Код: ЦБ-00005160

Micro Converter SDI to HDMI 3G микро-конвертер

Connections
SDI Video Inputs	1 x SD, HD or 3G-SDI.
SDI Video Outputs	1 x SDI loop out.
HDMI Outputs	HDMI Type A out.
Multi Rate Support	Auto detection of SD or HD.
Updates, Configurations and Power	USB Type‑C.
Standards
SDI Video Standards	525i59.94 NTSC, 625i50 PAL
HD Video Standards	720p50, 720p59.94, 720p60
	1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
	1080PsF25, 1080PsF29.97, 1080PsF30
	1080i50, 1080i59.94, 1080i60
	2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
	2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
SDI Compliance	SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
SDI Video Rates	SDI video connections are switchable between standard definition, 720p, 1080i, 1080p and DCI high definition.
SDI Color Precision	4:02:02
SDI Color Space	YUV
SDI Auto Switching	Automatically detects SD, HD and level A or B for 3G‑SDI.
HDMI Video Standards	525i29.97 NTSC, 625i50 PAL
	720p50, 720p59.94, 720p60
	1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
	1080i50, 1080i59.94, 1080i60
HDMI Color Precision	4:2:2. A 17 point LUT can be loaded via the software utility for calibrating or improving monitor color.
HDMI Color Space	YUV
Settings Control	Via MacOS™ and Windows™ software utility connected by USB.
Operating Systems	Mac 10.15 Catalina,
	Mac 11.1 Big Sur or later.
	Windows 10, 64-bit.
Software	Internal software upgrade via USB.
Power Requirements
Power Consumption	1.6 W
Operational Voltage Range	4.4V to 5.25V DC
Environmental Specifications
Operating Temperature	0° to 40° C (32° to 104° F)
Storage Temperature	-20° to 60° C (-4° to 140° F)
Relative Humidity	0% to 90% non-condensing
What's Included	Micro Converter SDI to HDMI 3G
Warranty	3 Year Limited Manufacturer’s Warranty.

Подробные характеристики

11 609,60 ₽

В наличии
