Хромакеинг, цветокоррекция

Ultimatte 12 4K видеопроцессор

Артикул: ULTMKEY12/C/4K. Код: ЦБ-00006563

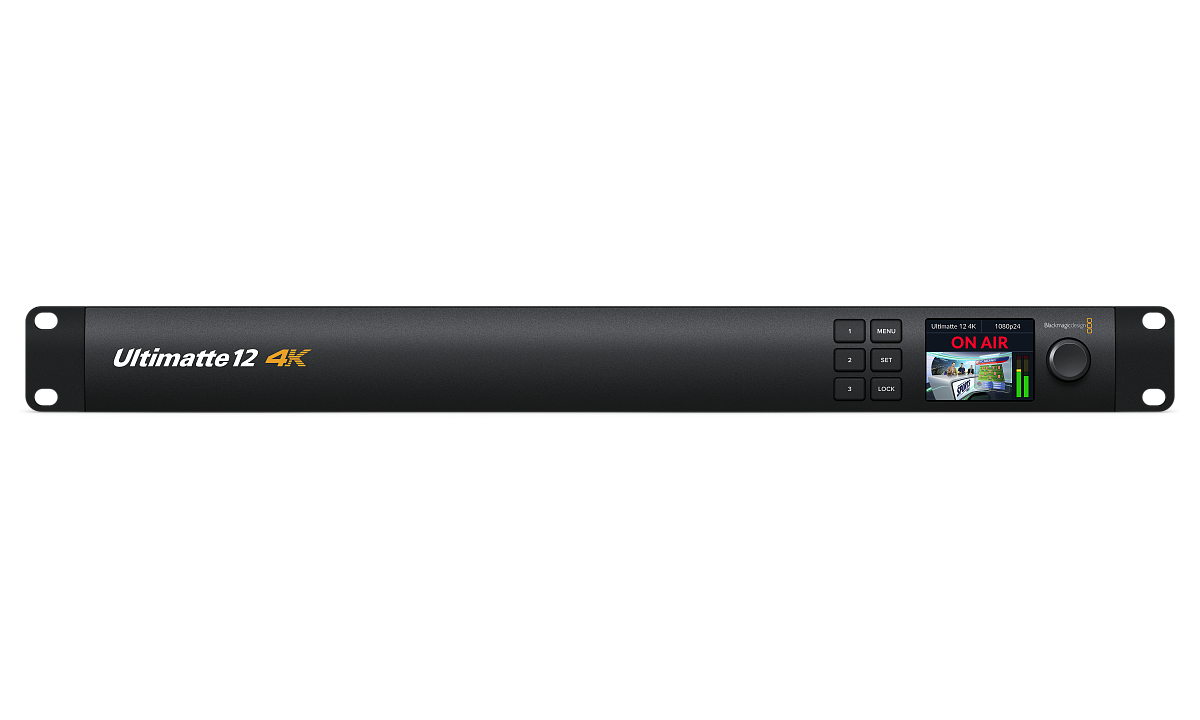

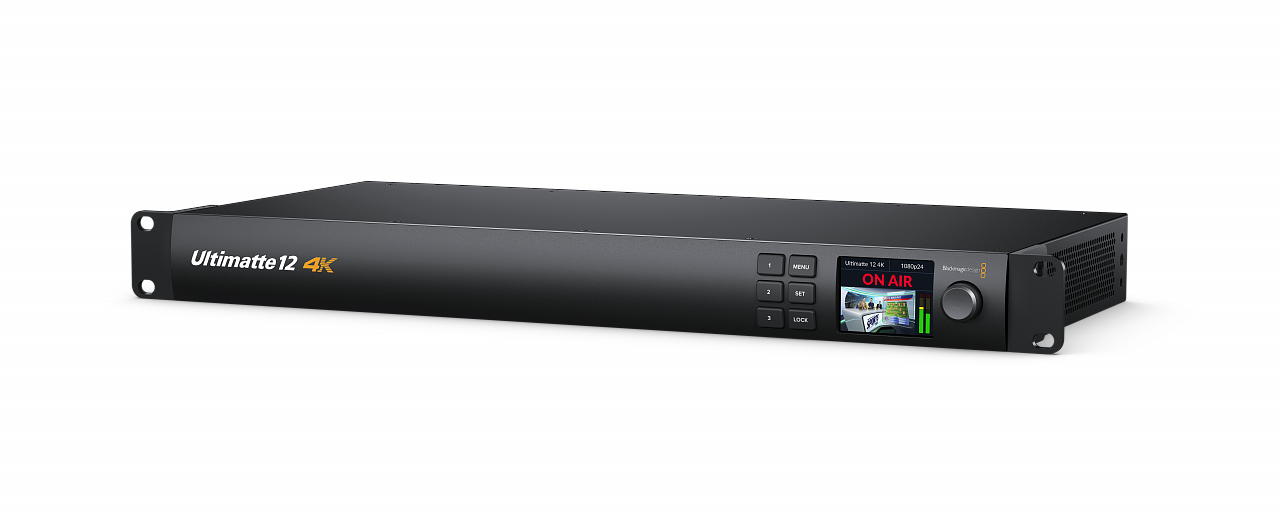

Ultimatte 12 4K видеопроцессор

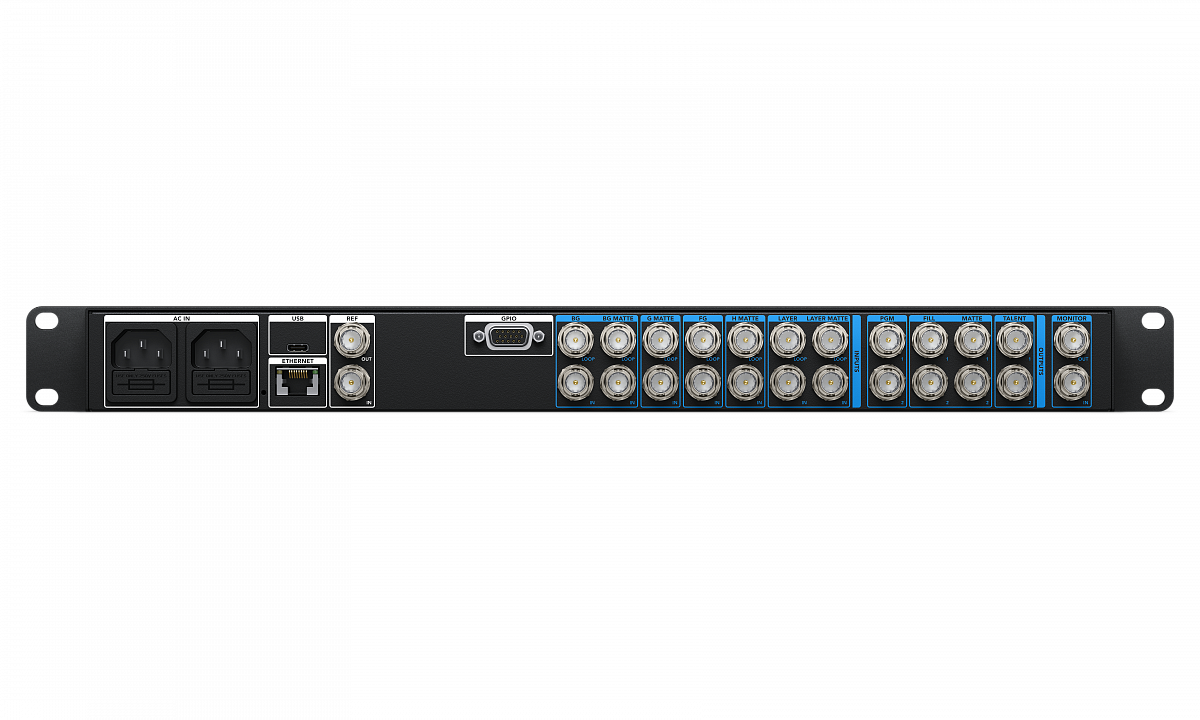

Connections
SDI Video Inputs	8
SDI Video Outputs	9
SDI Video Loop Outputs	7
	Reclocked SD, HD, Ultra HD for corresponding inputs.
SDI Rates	270Mb, 1.5G, 3G, 6G, 12G.
ST 2110 Video Inputs	1
ST 2110 Video Outputs	1
Video Input Re-Sync	On all inputs.
Reference Connections	1 x BNC In, 1 x BNC Out, 1 x RJ45 Ethernet
	Tri-Sync, Black Burst and PTP.
GPIO	DE15
Ethernet	Up to 10Gb/s for SMPTE 2110 IP video in and out, device control and loading stills into Media Pool.
Computer Interface	1 x USB-C 3.0 for device configuration and software updates.
Standards
SD Video Standards	525i59.94 NTSC, 625i50 PAL
HD Video Standards	720p50, 720p59.94, 720p60
	1080i50, 1080i59.94, 1080i60
	1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50,1080p59.94, 1080p60
	1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Ultra HD Video Standards	2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI Compliance	SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2110-20, SMPTE 2110-21, SMPTE 2110-30, SMPTE 2110-40
Video Sampling	4:02:02
Color Precision	10-bit
Color Space	REC 601, REC 709, REC 2020.
Multiple Rate Support	Auto detection of SD, HD, 6G‑SDI and 12G‑SDI.
Composite Sources
Foreground	1 x 12G-SDI In with Loop Out
	1 x RJ45 Ethernet for SMPTE 2110 IP video
Background	1 x 12G-SDI In with Loop Out
	Still from Media Pool
Background Matte	1 x 12G-SDI In with Loop Out
	Internal Window
	Still from Media Pool
Garbage Matte	1 x 12G-SDI In with Loop Out
	Internal Window
	Still from Media Pool
Holdout Matte	1 x 12G-SDI In with Loop Out
	Internal Window
	Still from Media Pool
Layer	1 x 12G-SDI In with Loop Out
	Still from Media Pool
Layer Matte	1 x 12G-SDI In with Loop Out
	Internal Window
	Still from Media Pool
Composite Outputs
Fill	2 x 12G-SDI
Matte	2 x 12G-SDI
Program	2 x 12G-SDI,
	1 x RJ45 Ethernet for SMPTE 2110 IP video
Talent	2 x 12G-SDI
Monitor
Monitor In	1 x 12G-SDI
	for monitor cascade
Monitor Out	1 x 12G-SDI
	For monitoring Program, Foreground Input, Background Input, Combined Matte, Internal Matte, Fill Out, Layer Input, Background Matte Input, Garbage Matte Input, Holdout Matte Input, Layer Matte Input, Processed Layer Matte, Processed Holdout Matte, Processed Garbage Matte, Processed Background Matte, Screen Correction.
Media Pool
Background Still Image Formats	TGA, TIFF, BMP, PNG, JPG.
Background with Alpha Still Image Formats	TGA, TIFF, BMP.
Layer Image Still Image Formats	TGA, TIFF, BMP, PNG, JPG.
Layer with Alpha Still Image Formats	TGA, TIFF, BMP.
Garbage Matte Still Image Formats	TIFF, BMP, PNG, JPG.
Holdout Matte Still Image Formats	TIFF, BMP, PNG, JPG.
Media Pool Memory	6GB non-volatile internal storage.
Displays	Built in 2.2 inch color display for device name, video preview, video standard audio meters, status and menus.
Control
Front Panel	2.2 inch color display, 3 preset buttons,
	3 menu buttons and spin knob.
Control Connection	Network or direct Ethernet connection to a computer
	running Ultimatte Software Control or Ultimatte Smart Remote 4.
Software Control	Ultimatte Software Control
	supported on Mac™ or Windows™ computers.
Hardware Control Panel	Ultimatte Smart Remote 4
IP Compliance
SMPTE 2110-20	IGMP v2
(Uncompressed Video)
SMPTE 2110-21
(Traffic Shaping)	Sender: Narrow
	Receiver: Narrow, Wide Synchronous, Asynchronous
SMPTE 2110-30
(PCM)	Audio Conformance level: Level C
SMPTE 2110-40
(Ancillary Data)	Access to SMPTE ancillary data stream RP 188/SMPTE 12M-2
Precision Time Protocol	IEEE 1588-2008 (PTP v2)
	ST 2059-1
	ST 2059-2
NMOS IS-04
Discovery and Registration	v1.3.2
	Peer-to-peer via mDNS/DNS-SD
NMOS IS-05
Connection Management	v1.1.2
NMOS BCP-002-01	Natural Grouping
NMOS BCP-004-01	Receiver capabilities
Software
Software Updates	Using USB‑C or Ethernet connection to Mac™ or Windows™ computers.
Configuration	Ultimatte IP address is set via the front panel or Ultimatte setup utility connected via USB.
Operating Systems	Mac 13.0 Ventura,
	Mac 14.0 Sonoma or later.
	Windows 10, 64-bit.
	Windows 11.
Power Requirements
Power Supply	2 x Internal 100-240V AC, 50/60Hz
Power Usage	54W
Accessories
Optional Accessories	Ultimatte Smart Remote 4
Physical Installation	1 rack unit height
Environmental Specifications
Operating Temperature	0° to 40°C (32° to 104°F)
Storage Temperature	-20° to 60°C (-4° to 140°F)
Relative Humidity	0% to 90% non-condensing.
What's Included	Ultimatte 12 4K
	Welcome wallet with QR code for software download
Warranty	1 Year Limited Manufacturer’s Warranty.

Подробные характеристики

475 621,51 ₽

В наличии

Добавить в корзину

Нет в наличии

Цена актуальна на 11.06.2026

Поделитесь с друзьями:

Печать Скопировать ссылку

Информация

О товаре

Основные сведения о товаре, его особенностях и комплектации

Ultimate 12 4K - это видеопроцессор, предназначенный для обработки видео в реальном времени с использованием широковещательной графики, виртуальных декораций и многого другого.
